| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | Huawei Xfusion |
| Model Number: | XFusion 1288H V7 |
| Minimum Order Quantity: | 1 unit |
| Price: | $3,732.00/pieces 2-4 pieces |
| Packaging Details: | original package,wrap with preservative film to moistureproof. |
| Supply Ability: | 200 Piece/Pieces per Quarter |
| Private Mold: | NO | Products Status: | Stock |
|---|---|---|---|
| Type: | Rack | Processor Main Frequency: | 2.0GHz |
| Processor Type: | Intel Xeon | Port: | Tianjin. |
|
Item
|
New Generation Huawei Server 1288H V7 SQL Win server 2022 standard Dual Xeon Gold 1U Rack Server
|
|
Brand
|
XFusion
|
|
Type
|
1U Dual Socket Rack Server
|
|
Processor
|
1 or 2 x 4rd Gen Intel® Xeon® Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor
|
|
Memory
|
32 x DDR5 DIMMs, with up to 4800 MT/s speed
|
|
Storage Controllers
|
Provides RAID 0, 1, 10, 1E, 5, 50, 6, 60; supports optional supercapacitor for cache data power failure
protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |
|
Drive Bays
|
Supports hot-swappable drives in the following configurations:
• 10 x 2.5" drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5" SAS/SATA drives/SSDs (2–4 NVMe SSDs and 6–8 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5" SAS/SATA drives/SSDs • 8 x 2.5" SAS/SATA drives/SSDs • 4 x 3.5" SAS/SATA drives/SSDs • 32 x E1.s SSDs • 20 x E3.s SSDs* • 2 x M.2 SSDs |
|

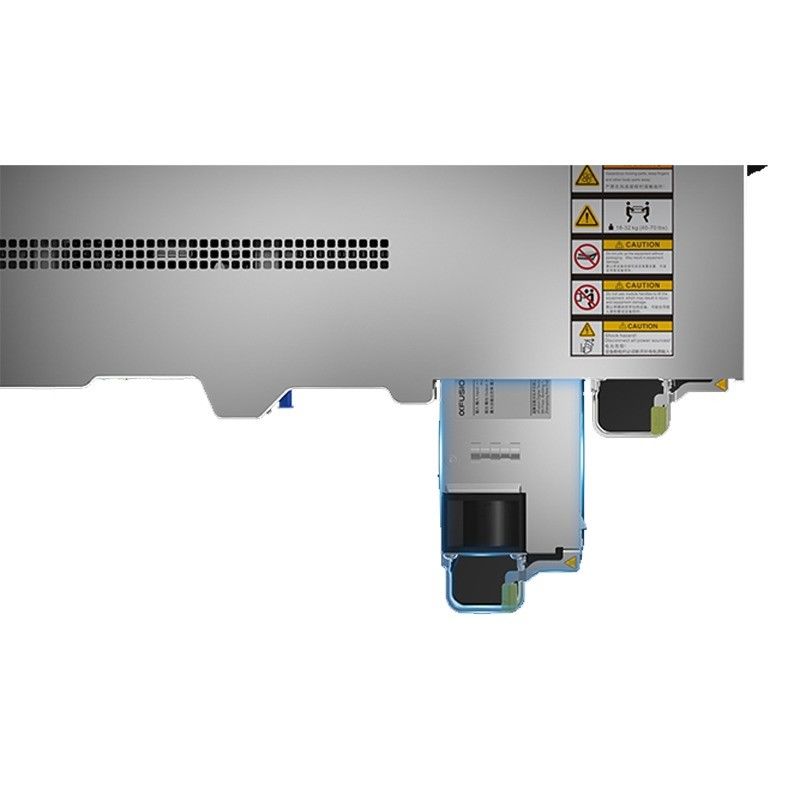

Power Supply
|
2 x hot-swappable PSUs in 1+1 redundancy mode. Supported options include:
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs • 1000 W (input: 100 V to 127 V AC) • 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC) • 2000 W AC Platinum PSUs • 1800 W (input: 200 V to 220 V AC or 192 V to 200 V DC) • 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) |
