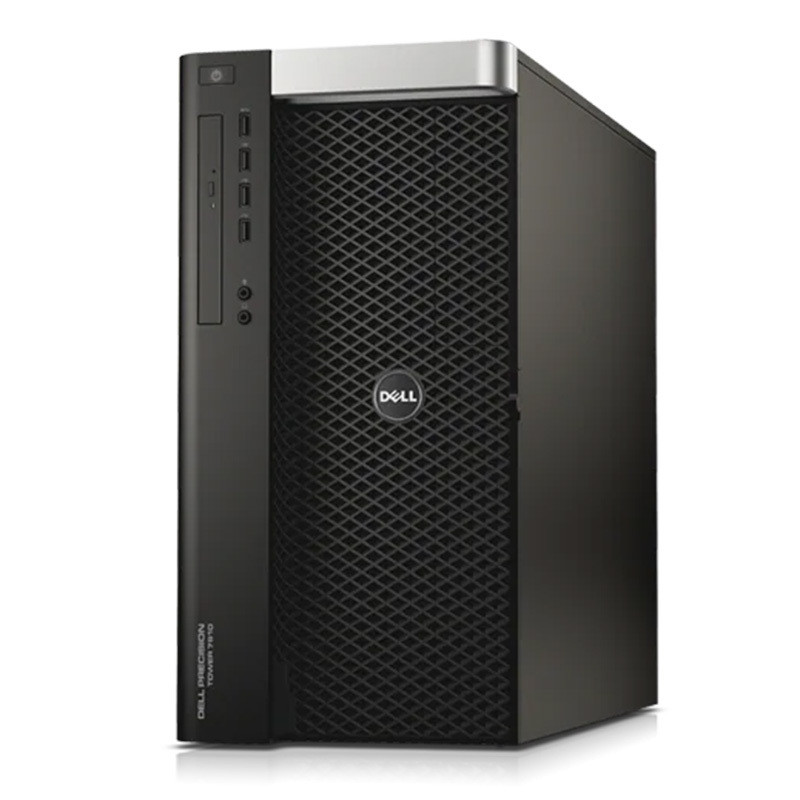

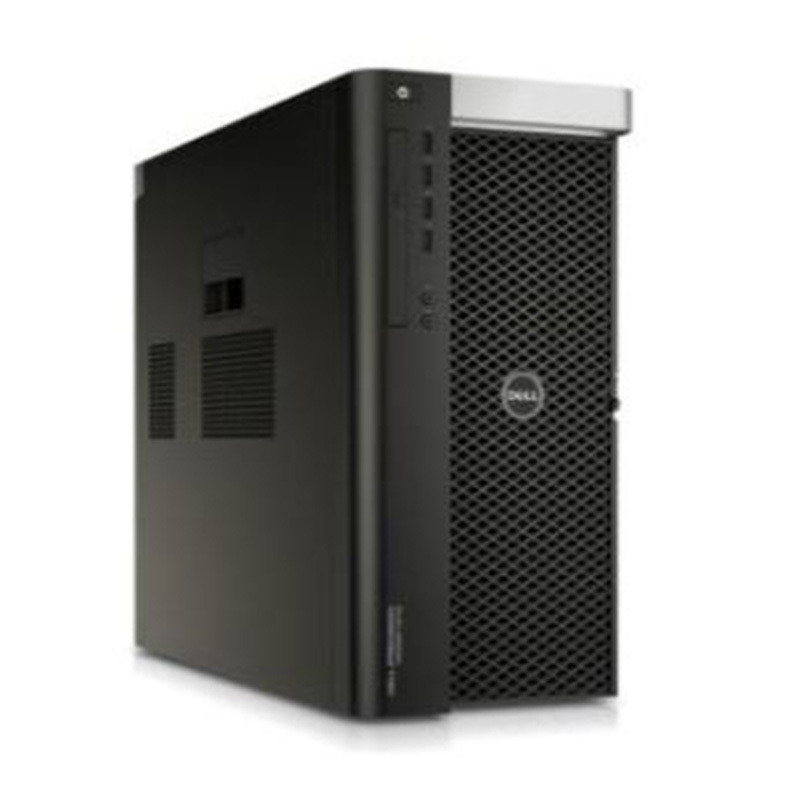

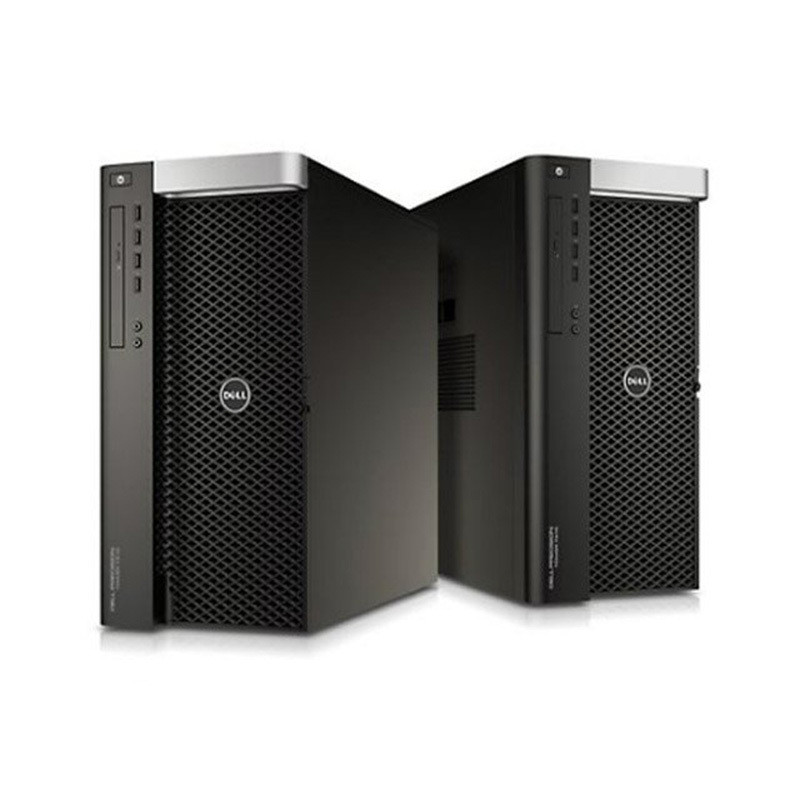

Stock Custom Precision T7910 Xeon CPU Tower Workstation for Optimal Productivity

Type

Tower

Processor

One or two Intel® Xeon® processor E5-2600 v4 Series with up to 22 cores and Intel Advanced Vector Extensions, Intel Trusted
Execution
Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro™ technology

GPU

Support for 4 PCI Express® x16 Gen 2/Gen 3 graphics cards - up to 675W (total 3 x 225W graphics cards in 3 slots

Memory

Quad channel memory up to 1TB 2400MHz DDR4 ECC memory with dual CPUs, 16 DIMM Slots (8 DIMMs per CPU).
Note: memory speed is dependent on specific Intel Xeon E5-2600 v4 Series processor installed

Storage Controllers

Integrated: LSI SAS 3008 12Gb/s SAS (6Gb/s SATA) controller supports software RAID 0, 1, 10 with up to 8 hard drives. 2 integrated
Intel controller (6Gb/s) SATA ports for optical drives.
Optional: LSI MegaRAID® SAS 9341-8i 12Gb/s SAS (6Gb/s SATA) PCIe controller supports software RAID 0,1,5,10.
LSI MegaRAID® SAS 9361-8i 12Gb/s SAS (6Gb/s SATA) ) PCIe controller (1GB cache with Flash module/Super Cap backup) supports
hardware RAID 0,1,5,10

Storage devices

Slimline options: DVD-ROM; DVD+/-RW, Optional 5.25" bay devices: BD, DVD+/-RW; 19-in-1 media reader, 4 x 2.5" HDD/SSD kit
