• Persistent Memory NVDIMM-N can increase database performance by 10x
| Place of Origin: | Beijing, China |
|---|---|
| Model Number: | R740 Poweredge |
| Minimum Order Quantity: | 1 unit |
| Price: | $1,300.00/pieces 1-9 pieces |
| Private Mold: | NO | Products Status: | Stock |
|---|---|---|---|
| Type: | Rack | Processor Type: | Intel Xeon |
|
Item
|

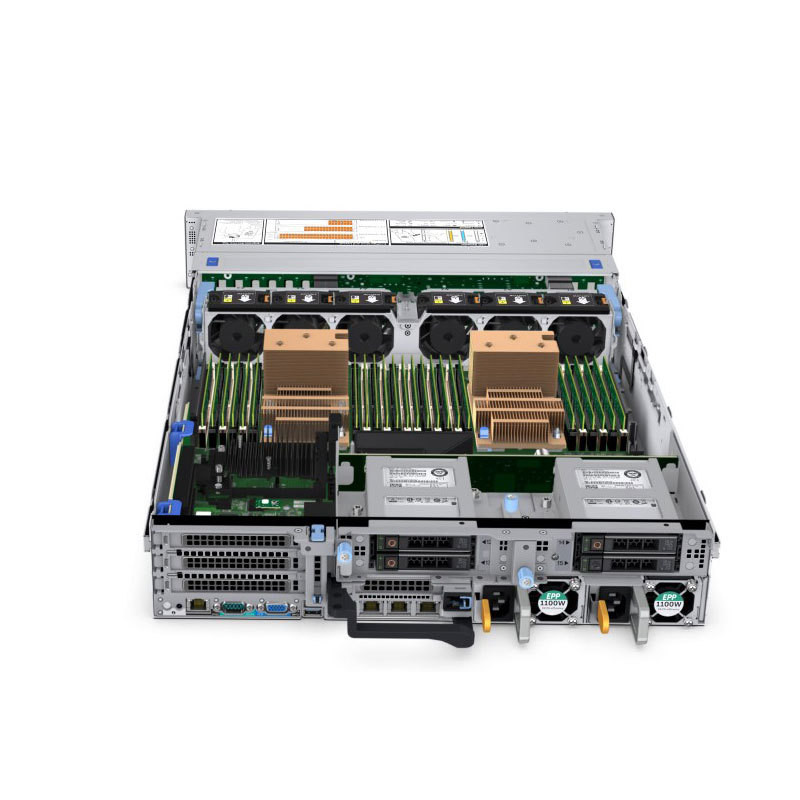

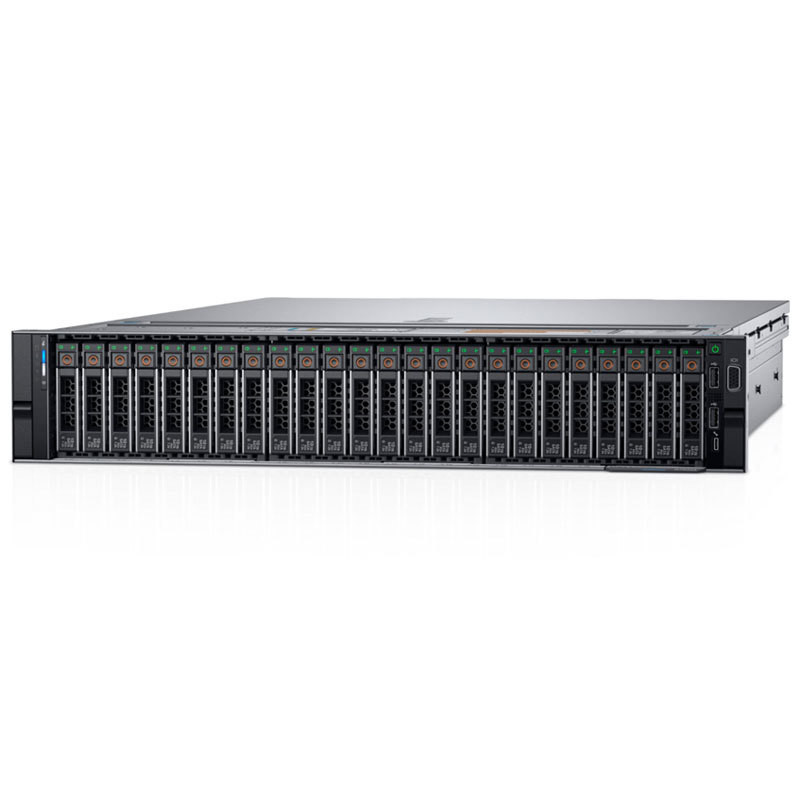

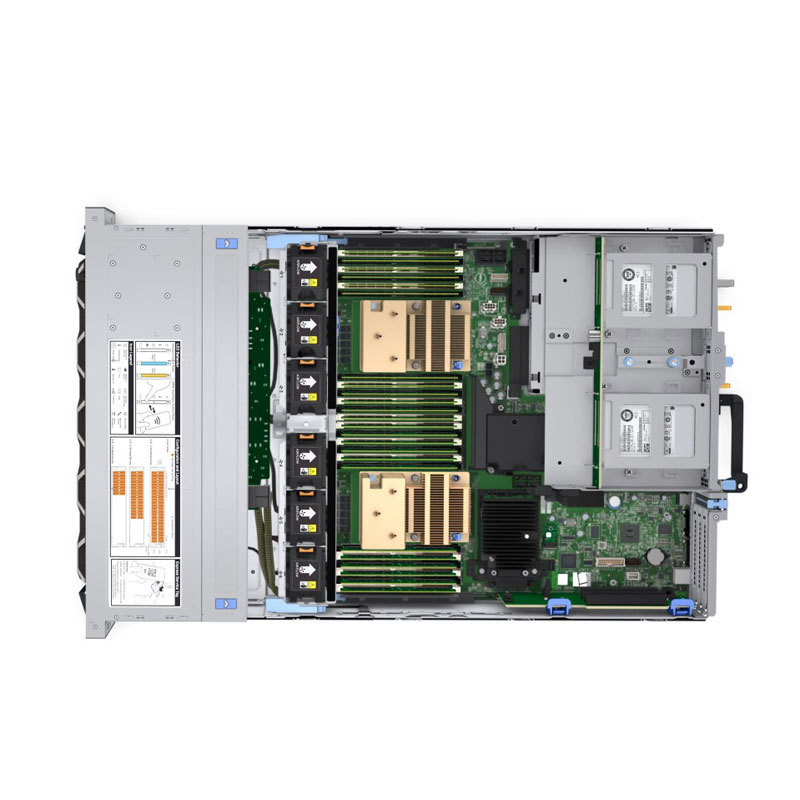

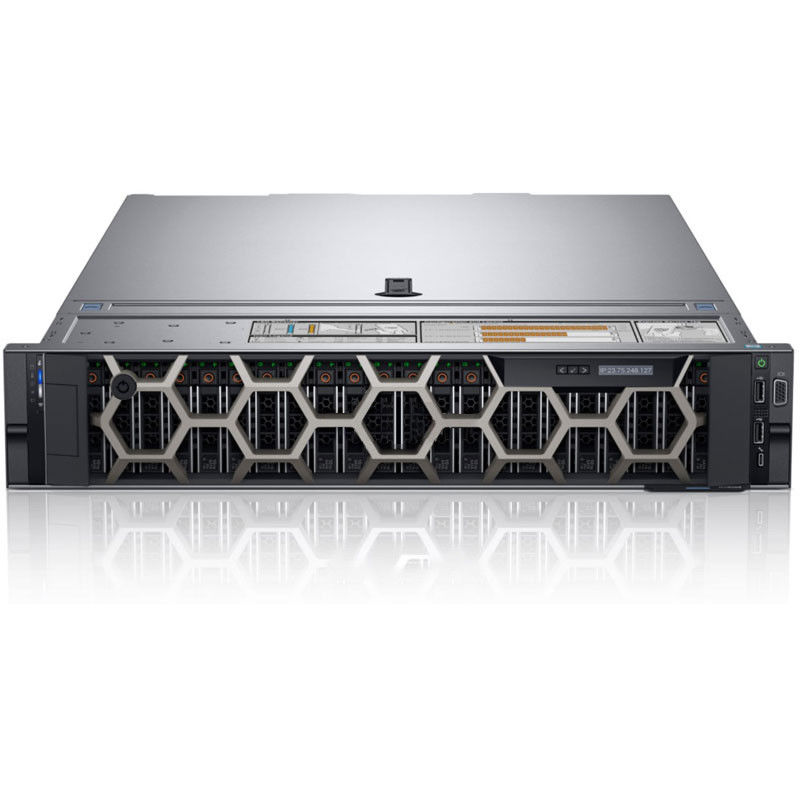

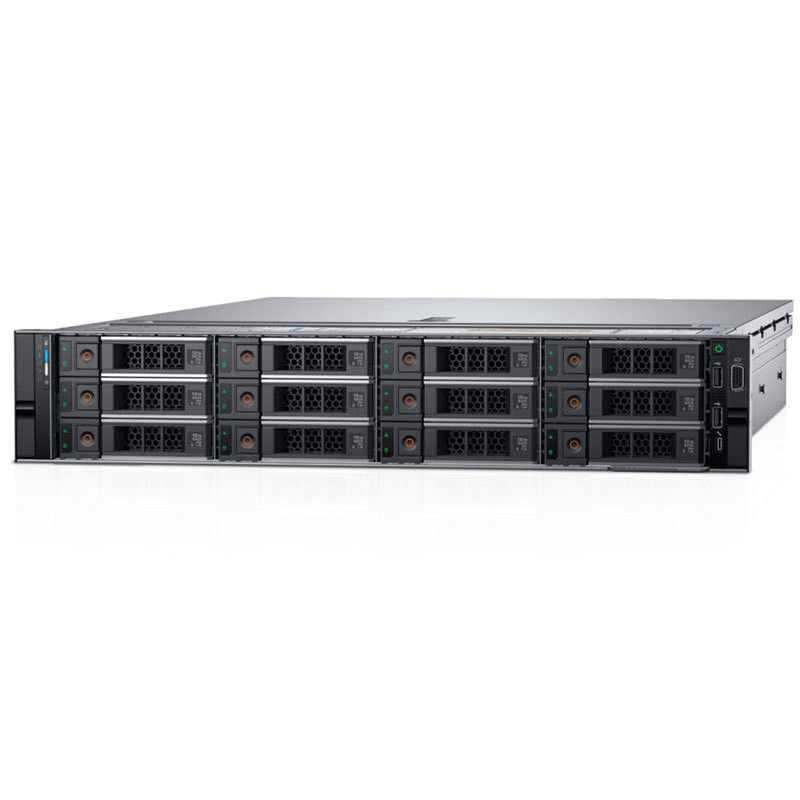

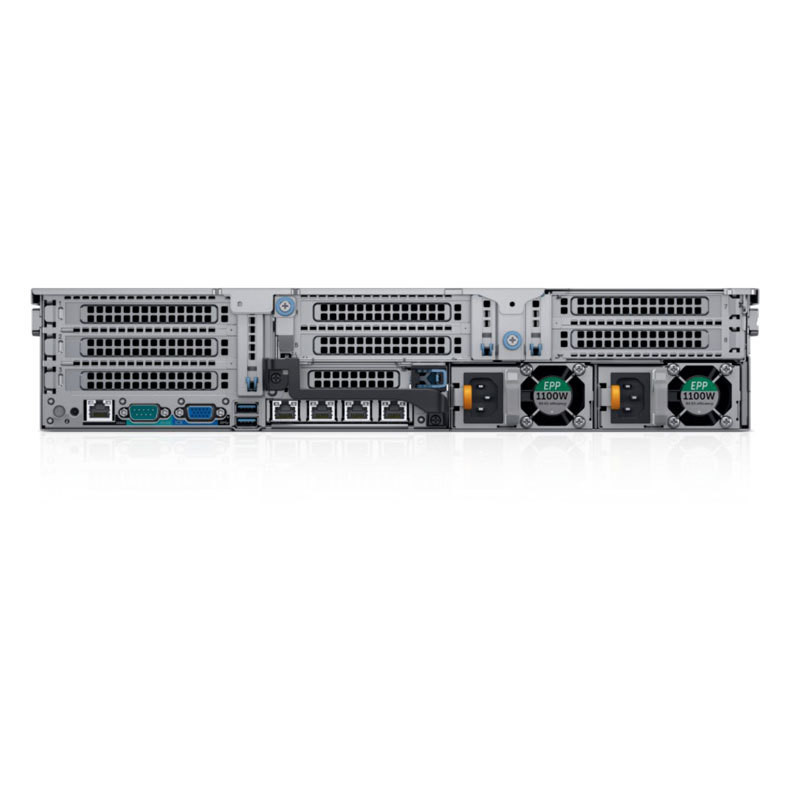

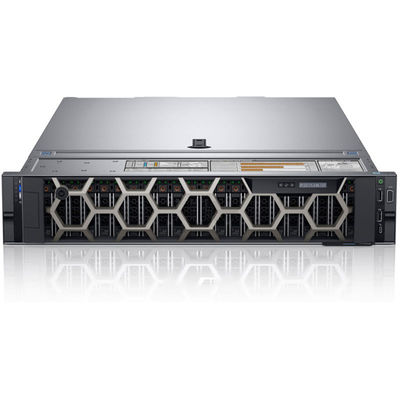

R740 Poweredge Intel Xeon CPU PC Computer Storage Media GPU 2u 24SFF Rack Server
|
|
Type
|
2U Dual Socket Rack Server
|
|
Processor
|
Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor
|
|
Memory
|
24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Supports registered ECC
DDR4 DIMMs only |
|
Storage Controllers
|
Internal controllers: PERC H330, H730p, H740p, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs
120GB, 240 GB External PERC (RAID): H840
12Gbps SAS HBAs (non-RAID): External- 12Gbps SAS HBA (non-RAID), Internal- HBA330(non-RAID)
|
|
Drive Bays
|
Front drive bays: Up to 16 x 2.5” SAS/SATA (HDD/SSD) max 61TB or up to 8 x 3.5” SAS/SATA HDD max 96TB Optional DVD-ROM, DVD+RW
|
|
Power Supply
|
Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W
|
