| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | XFusion Server |
| Model Number: | 2288H V7 |
| Minimum Order Quantity: | 1 unit |
| Price: | $1,200.00/pieces 2-4 pieces |
| Packaging Details: | original package,wrap with preservative film to moistureproof. |
| Supply Ability: | 200 Piece/Pieces per Day |
| Private Mold: | NO | Products Status: | Stock |
|---|---|---|---|
| Type: | Rack | Processor Main Frequency: | 2.0GHz |
| Processor Type: | Intel Xeon | Port: | Shenzhen Tianjin Xiamen Guangzhou |

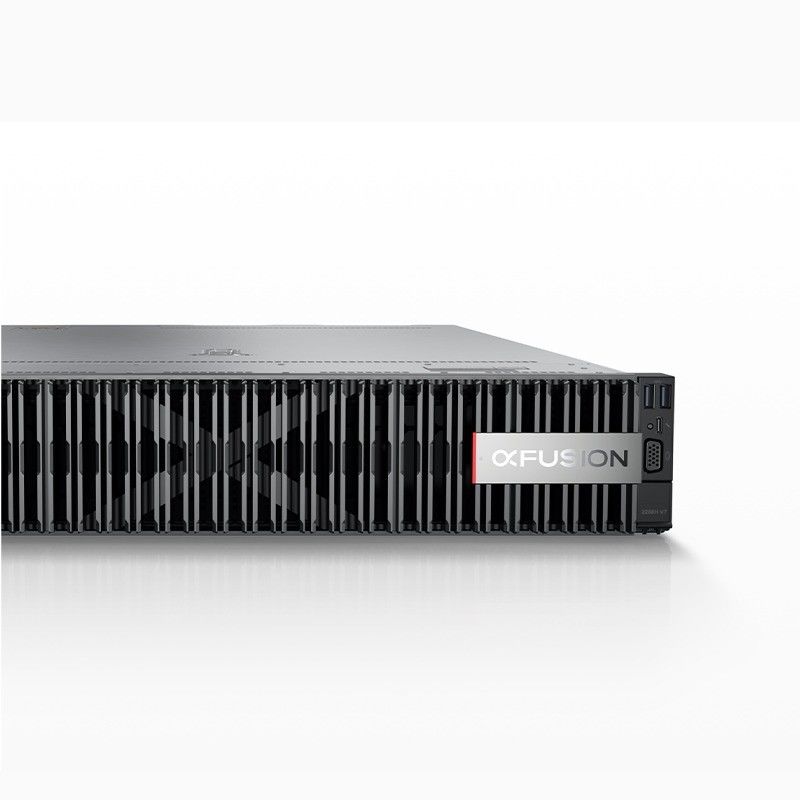

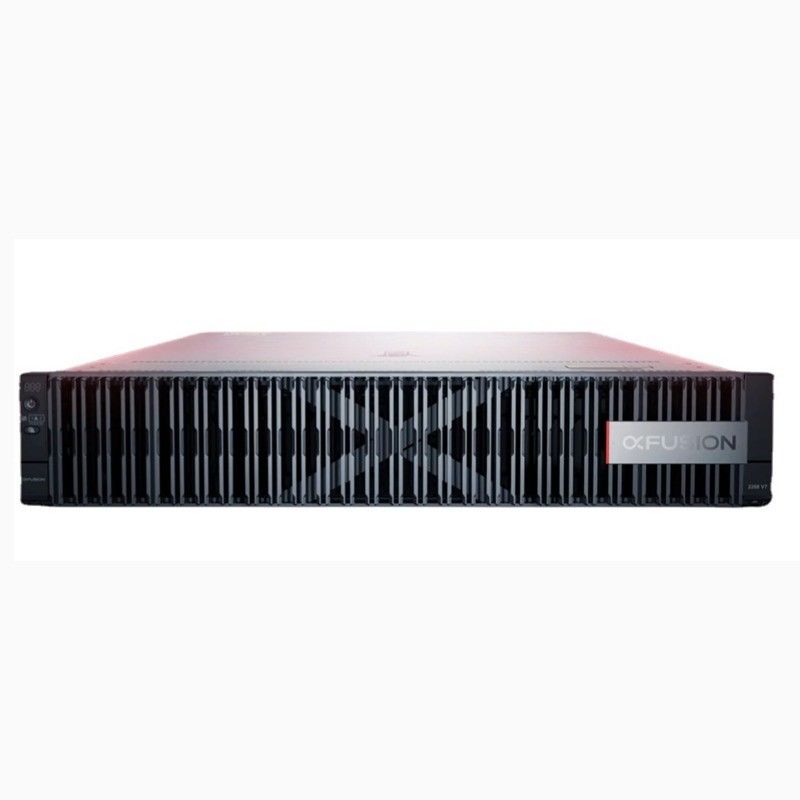

Item | Huawei Xfusion Servers 2288H V7 Computer Win Server 2022 Standard GPU 2U Rackmount Server Chassis |
Brand | Xfusion Servers |
Type | 2U Dual Socket Rack Server |
Processor | 1 or 2 x 4rd Gen Intel Xeon Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor |
Memory | 32 DDR5 DIMMs, with up to 4800 MT/s speed. Supports memory expansion via CXL with up to 16 x DDR5 or DDR4 DIMM slots; up to 48 x DIMM slots |
Storage Controllers | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |

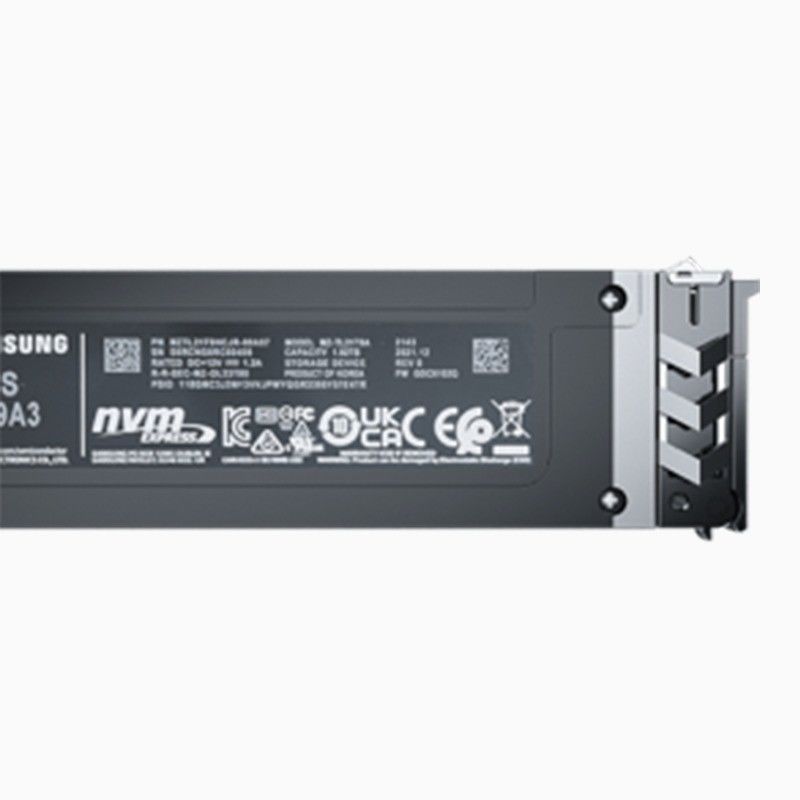

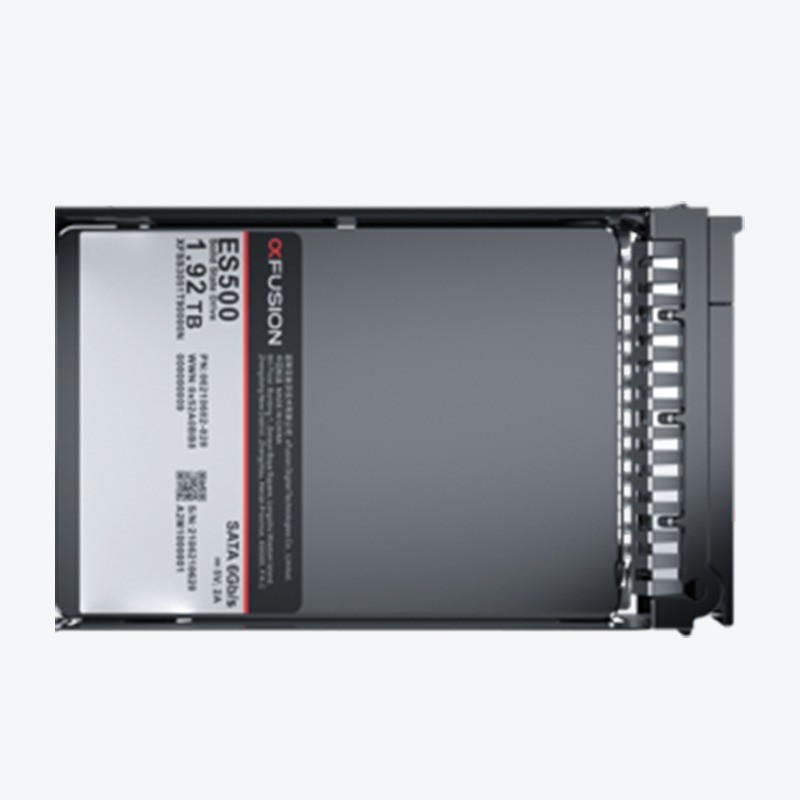

Drive Bays | Hot-swappable drives with the following configuration options are supported: • 8 to 31 x 2.5" SAS/SATA/SSD drives • 12 to 20 x 3.5" SAS/SATA drives • 4/8/16/24 x NVMe SSDs • 36 x E1.s SSDs or 48 x E3.s SSDs • Up to 45 x 2.5" drives, or 34 x full NVMe SSDs • 2 x M.2 SSDs |
Power Supply | 2 x hot-swappable PSUs in 1+1 redundancy mode. Supported options include: • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs 1000 W (input: 100 V to 127 V AC) 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC) • 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) 2900 W (input: 220 V to 230 V AC) 3000 W (input: 230 to 240 V AC) • 2000 W AC Platinum PSU 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) |
