| Place of Origin: | Fujian, China |
|---|---|
| Brand Name: | H3C |
| Model Number: | CE5810-48T4S-EI Switch |
| Minimum Order Quantity: | 1 unit |
| Price: | $5,000.00/pieces 1-9 pieces |
| Private Mold: | NO | Products Status: | Stock, Used, Stock |
|---|---|---|---|
| Ports: | ≥ 48 | Transmission Rate: | 10/100/1000Mbps |
| Function: | LACP, SNMP | Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 56 Gb/s | Product Name: | CE5810-48T4S-EI Switch |
| Type: | Rack |

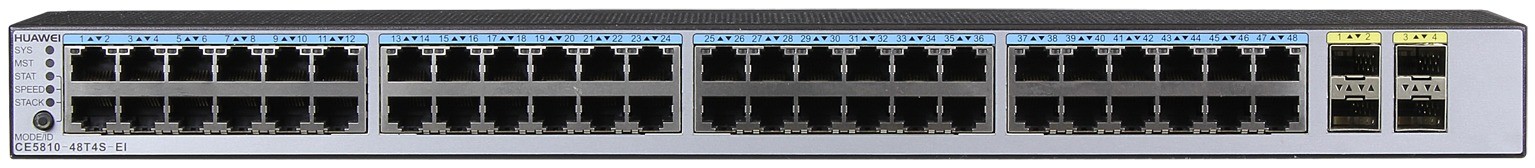

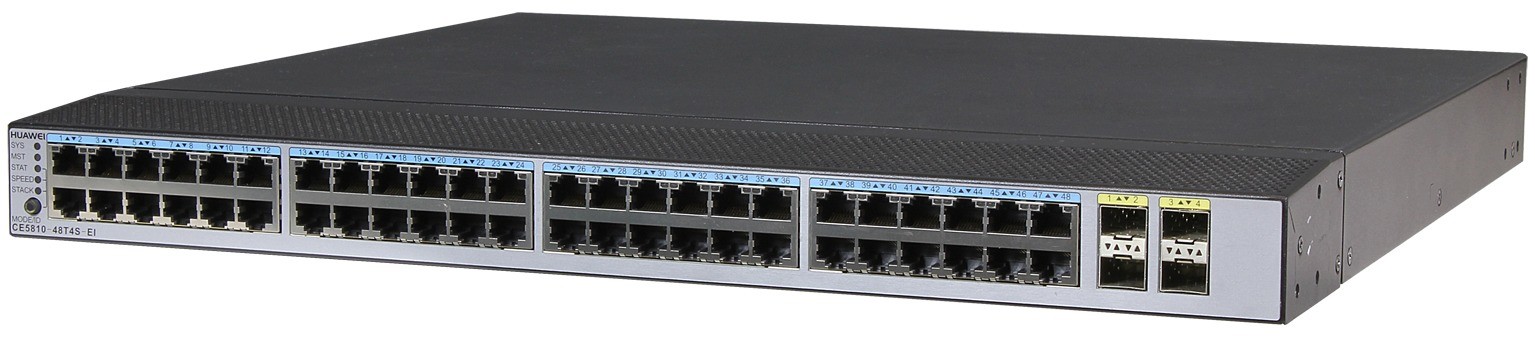

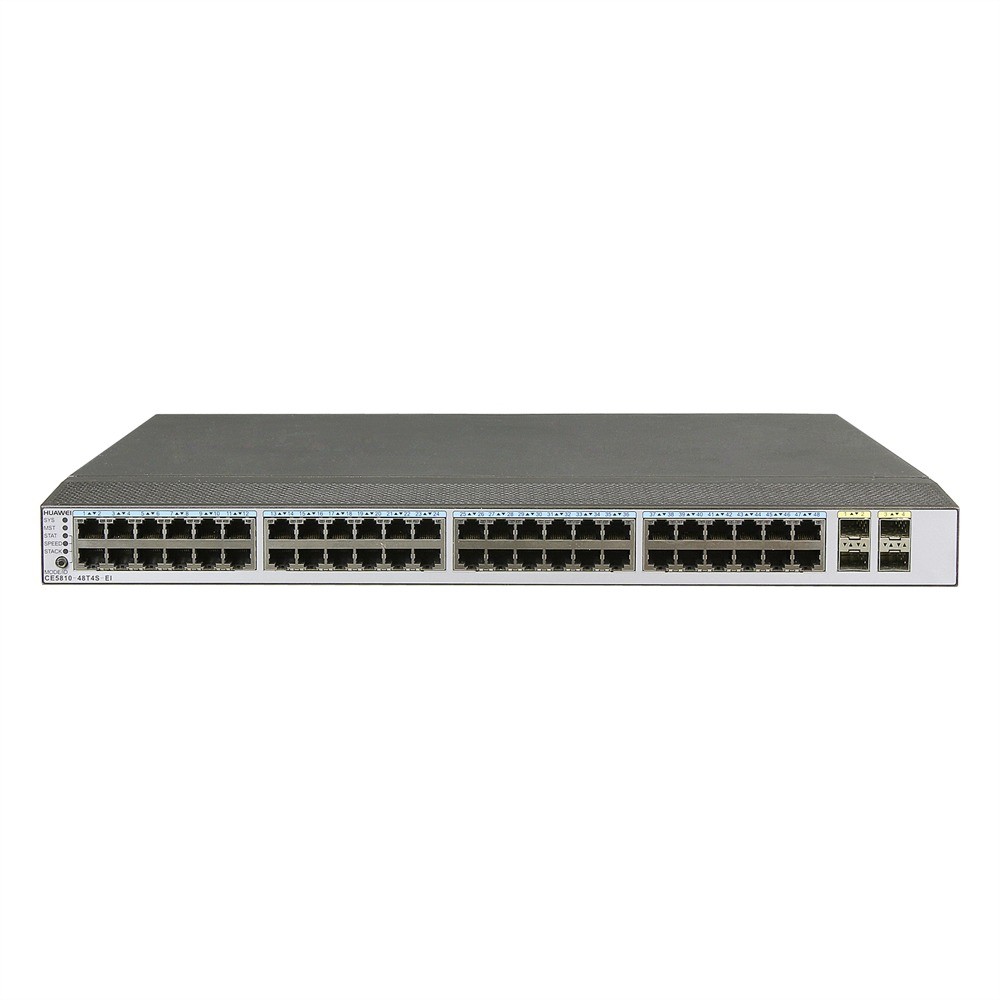

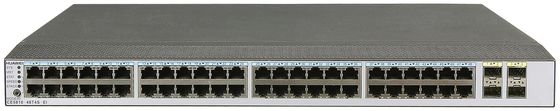

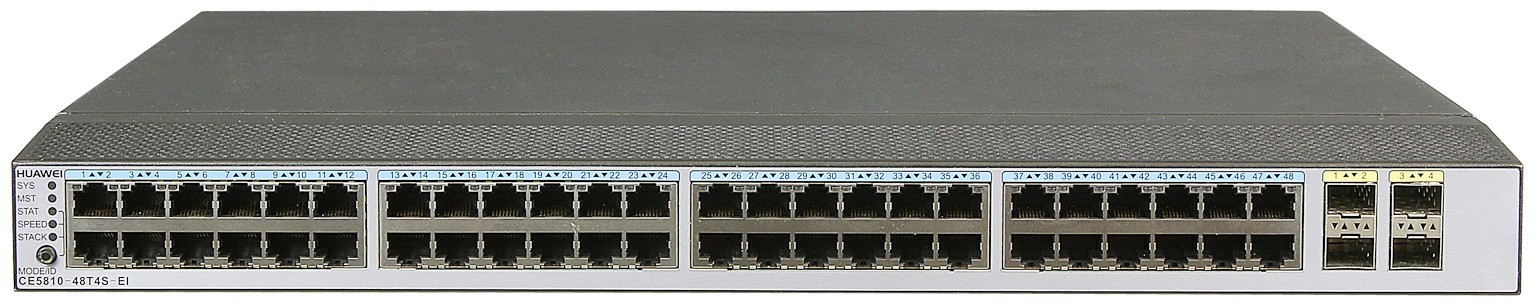

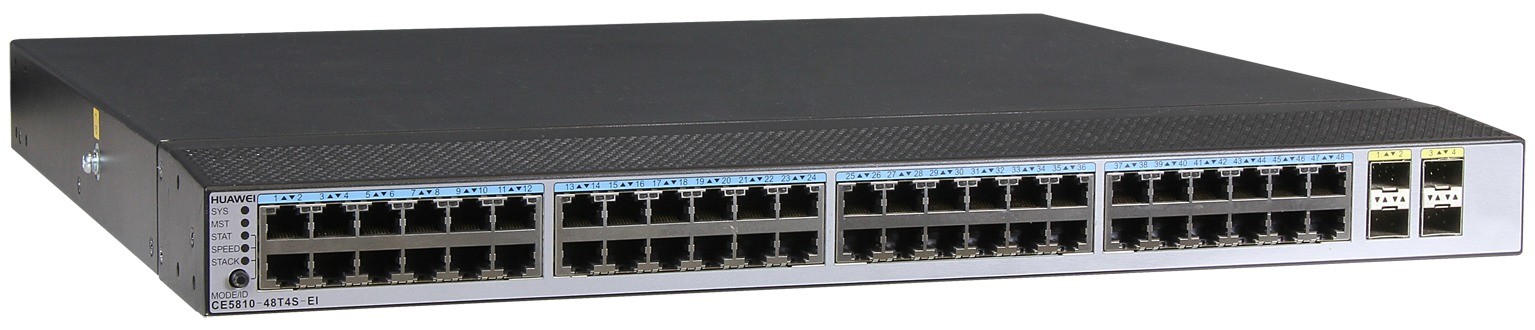

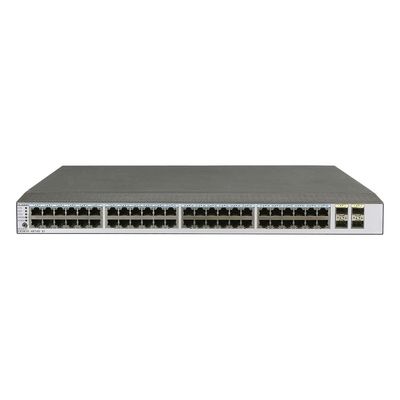

CE5810-48T4S-EI Switch 48-Port GE RJ45, 4-Port 10GE SFP+, Without Fan and Power Module. It is one of the Huawei CloudEngine CE5800 series (CE5800 for short) switches. The Huawei CloudEngine CE5800 series switches are next-generation, high-density Gigabit Ethernet switches designed for data centers and high-end campus networks. The hardware has an advanced architectural design with the industry’s highest density of GE access ports. The CE5800 is also the first Gigabit Ethernet access switch to provide 40 GE uplink ports.
| Product Code | CE5810-48T4S-EI |
| Software Version | V100R002C00 and later |
| Fixed GE interfaces | 48*10/100/1000BASE-T |
| Fixed 10GE interfaces | 4*10GE SFP+ |
| Fixed 40GE interfaces | None |
| Fixed 100GE interfaces | None |
| Base-T Ports | ?48 |
| SFP+ Ports | 4 |
| QSFP+ Ports | 0 |
| Switching Capacity | 176 Gbit/s |
| Forwarding Rate | 132 Mpps |

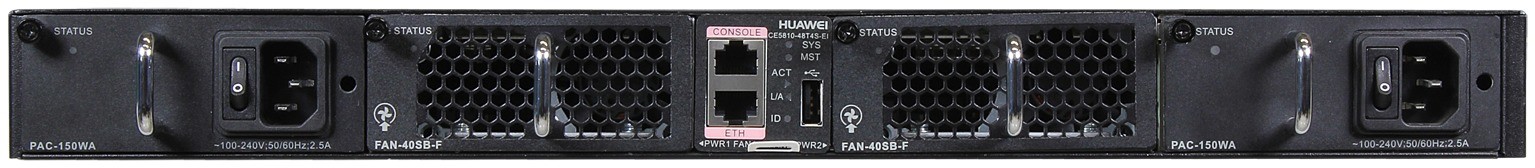

| Power module type | Pluggable AC or DC power module, 1+1 backup supported |
| Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
| Maximum power consumption | 92W |
| Airflow | Front-to-back or back-to-front, depending on the fan modules and power modules used in the chassis |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight (fully loaded) | 8.2 kg (18.1 lb) |
CE5810-48T4S-EI Specification |
|
| Base-T Ports | 48 |
| SFP+ Ports | 4 |
| QSFP+ Ports | - |
| Switching Capacity | 176 Gbit/s |
| Forwarding Rates | 132 Mpps |
| Airflow Design | Front-to-back or back-to-front |
| Device Virtualization | iStack |
| Super Virtual Fabric (SVF) | |
| Network Virtualization | M-LAG |
| TRILL (CE5855 & CE5850) | |
| VM Awareness | Agile Controller |
| SDN | Open Programmability System (OPS) |
| Traffic Analysis | NetStream |
| sFlow | |
| VLAN | Adding access, trunk, and hybrid interfaces to VLANs |
| Default VLAN | |
| QinQ | |
| MUX VLAN | |
| GVRP | |
| ACL | ingress: 4.5k egress: 1k |
| MAC Address Table | maximum: 32k |
| Dynamic learning and aging of MAC addresses | |
| Static, dynamic, and black hole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| MAC address limiting based on ports and VLANs | |
| ARP (maximum) | 8k |
| IPv4 FIB (maximum) | 12k |
| IP Routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
| IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ (not supported by CE5855) | |
| IPv6 FIB (maximum) | 6k |
| IPv6 | IPv6 Neighbor Discovery (ND) (not supported by CE5855) |
| Path MTU Discovery (PMTU) (not supported by CE5855) | |
| TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6 | |
| Multicast FIB (maximum) | 8k |
| Multicast | IGMP, PIM-SM, PIM-DM, MSDP, and MBGP |
| IGMP snooping | |
| IGMP proxy | |
| Fast leave of multicast member interfaces | |
| Multicast traffic suppression | |
| Multicast VLAN | |
| Reliability | LACP |
| STP, RSTP, VBST, MSTP | |
| BPDU protection, root protection, and loop protection | |
| Smart Link and multi-instance | |
| DLDP | |
| ERPS (G.8032) | |
| VRRP, VRRP load balancing, and BFD for VRRP | |
| BFD for BGP/IS-IS/OSPF/Static route | |
| QoS | Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority |
| Actions of ACL, CAR, re-marking, and scheduling | |
| Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR | |
| Congestion avoidance mechanisms, including WRED and tail drop | |
| Traffic shaping | |
| Configuration and Maintenance | Console, Telnet, and SSH terminals |
| Network management protocols, such as SNMPv1/v2c/v3 | |
| File upload and download through FTP and TFTP | |
| BootROM upgrade and remote upgrade | |
| 802.3az Energy Efficient Ethernet (EEE) | |
| Hot patches | |
| User operation logs | |
| Zero-Touch Provisioning (ZTP) | |
| Security and Management | 802.1x authentication |
| Command line authority control based on user levels, preventing unauthorized users from using commands | |
| DoS, ARP, and ICMP attack defenses | |
| Port isolation, port security, and sticky MAC | |
| Binding of the IP address, MAC address, interface number, and VLAN ID | |
| Authentication methods, including AAA, RADIUS, and HWTACACS | |
| Remote Network Monitoring (RMON) | |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight (fully loaded) | 8.2 kg (18.1 lb) |
| Environmental Parameters | Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) |
| Storage temperature: -40°C to 70°C (-40°F to 158°F) | |
| Relative humidity: 5% to 95%, non-condensing | |
| Operating Voltage | AC: 90V to 290V |
| DC: -38.4V to -72V | |
| Maximum Power Consumption | 92W |
