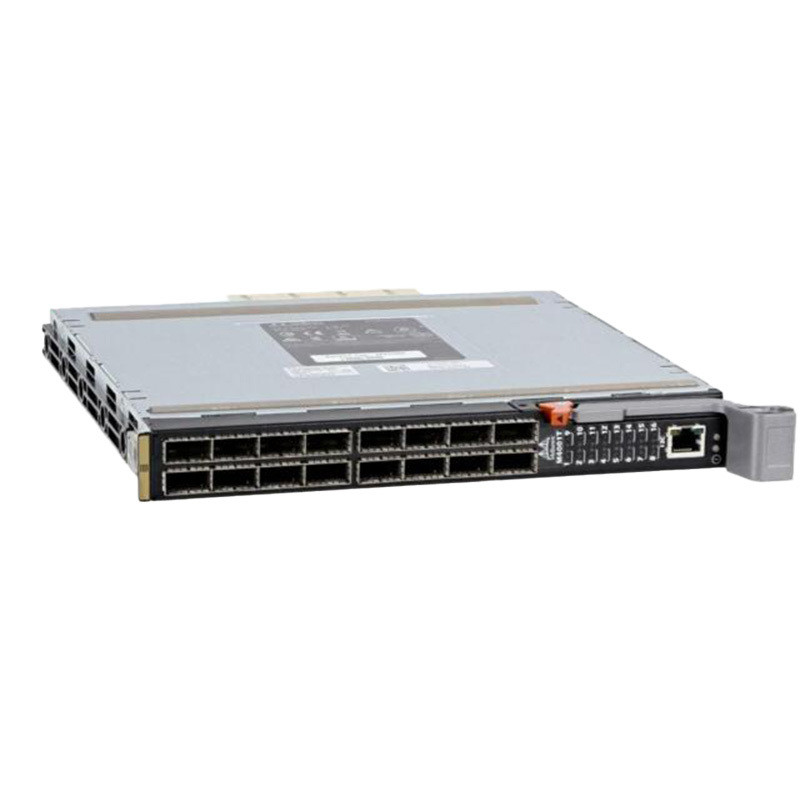

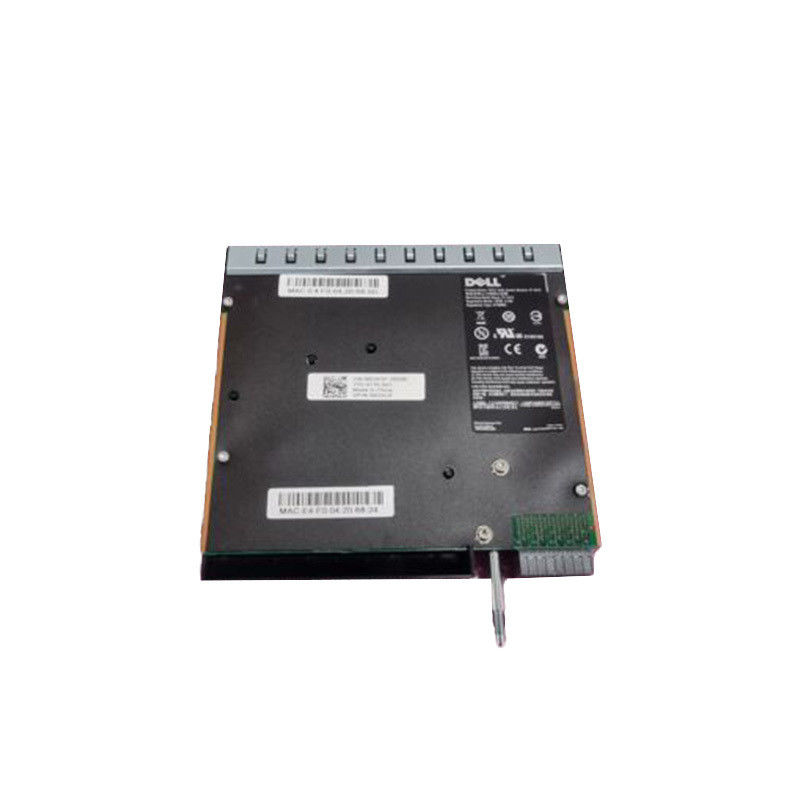

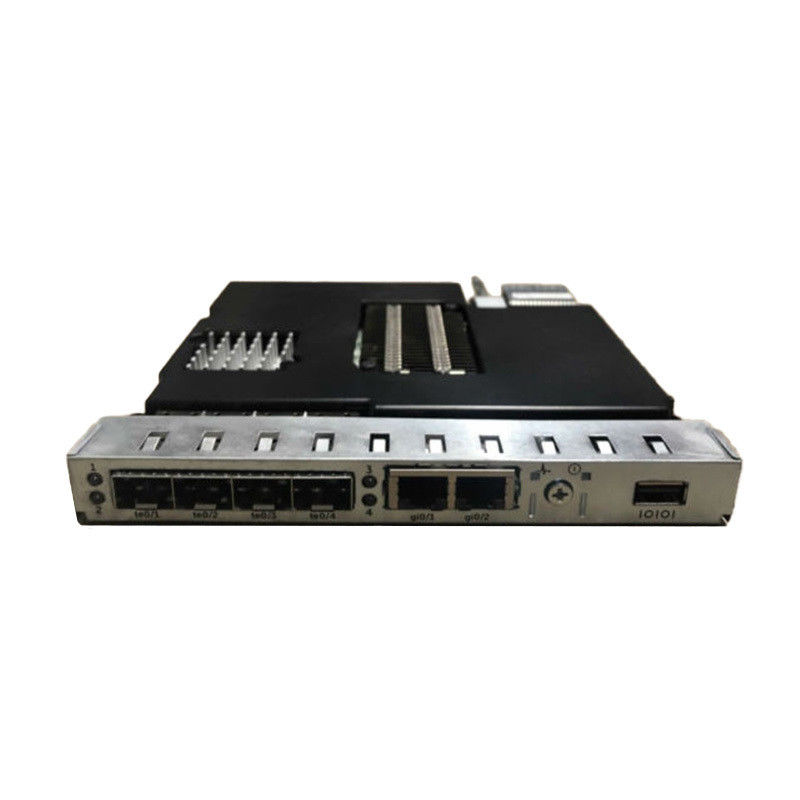

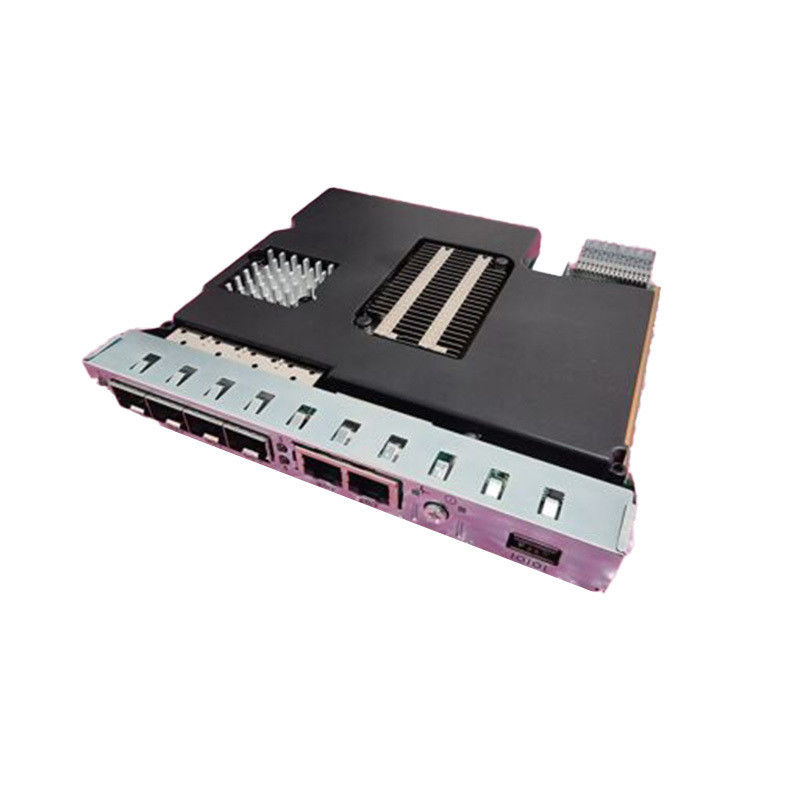

The VTRX 10GbE Switch Module, model R1-2210, is a layer 2 switch that supports speeds up to 10 Gbps. Both the switch GUI and CLI
provide access for configuring the switch. The OOB management IP must be on a different IP subnet than those defined on all other switch interfaces (port, VLAN). Blade servers are connected to internal (te 1/1 – te 4/4) ports. The internal ports communicate together allowing for east-west traffic.
