| Place of Origin: | Fujian, China |
|---|---|
| Brand Name: | H3C |
| Model Number: | H3C CE8860-4C-EI EI Switches |
| Minimum Order Quantity: | 1 unit |
| Price: | $3,000.00/pieces 1-9 pieces |
| Private Mold: | NO | Products Status: | Stock, Used, Stock |
|---|---|---|---|
| Ports: | ≥ 48 | Transmission Rate: | 10/100/1000Mbps |
| Function: | LACP, SNMP | Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 56 Gb/s | Product Name: | H3C CE8860-4C-EI EI Switches |
| Type: | Rack |

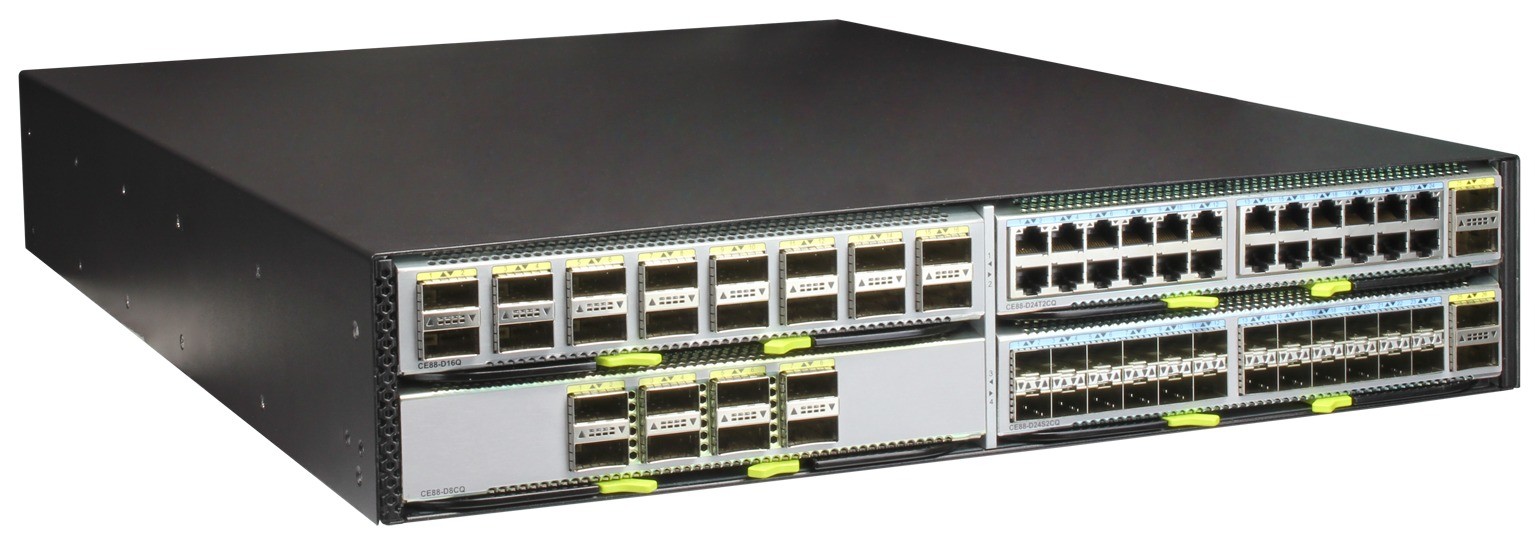

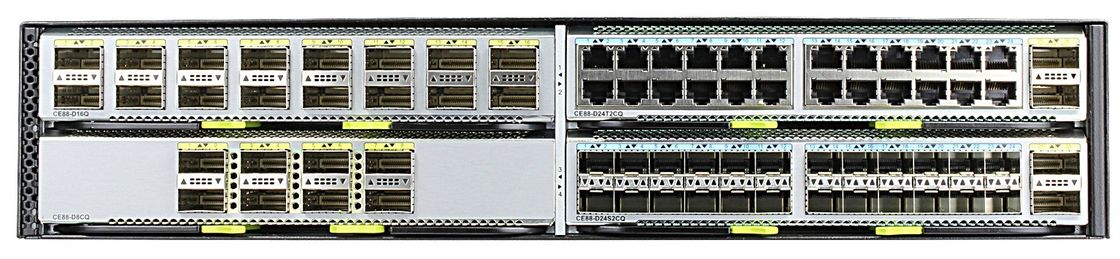

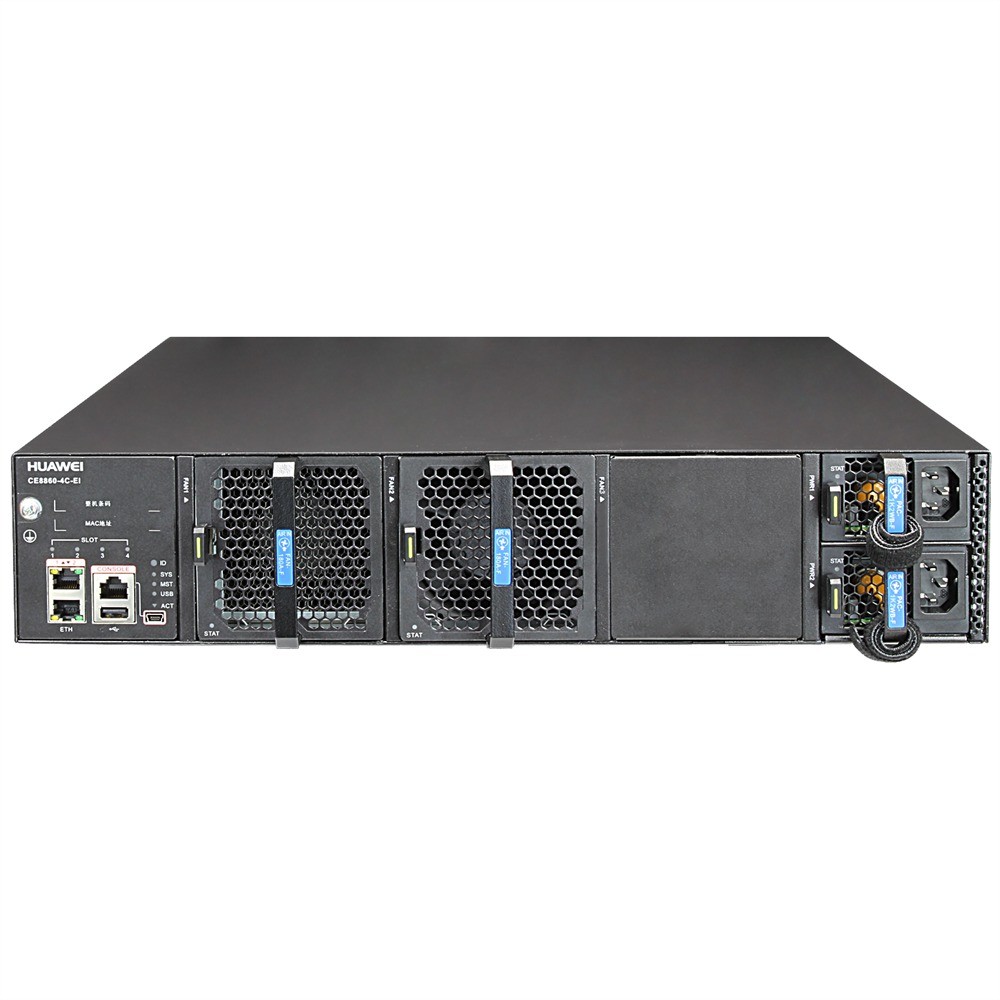

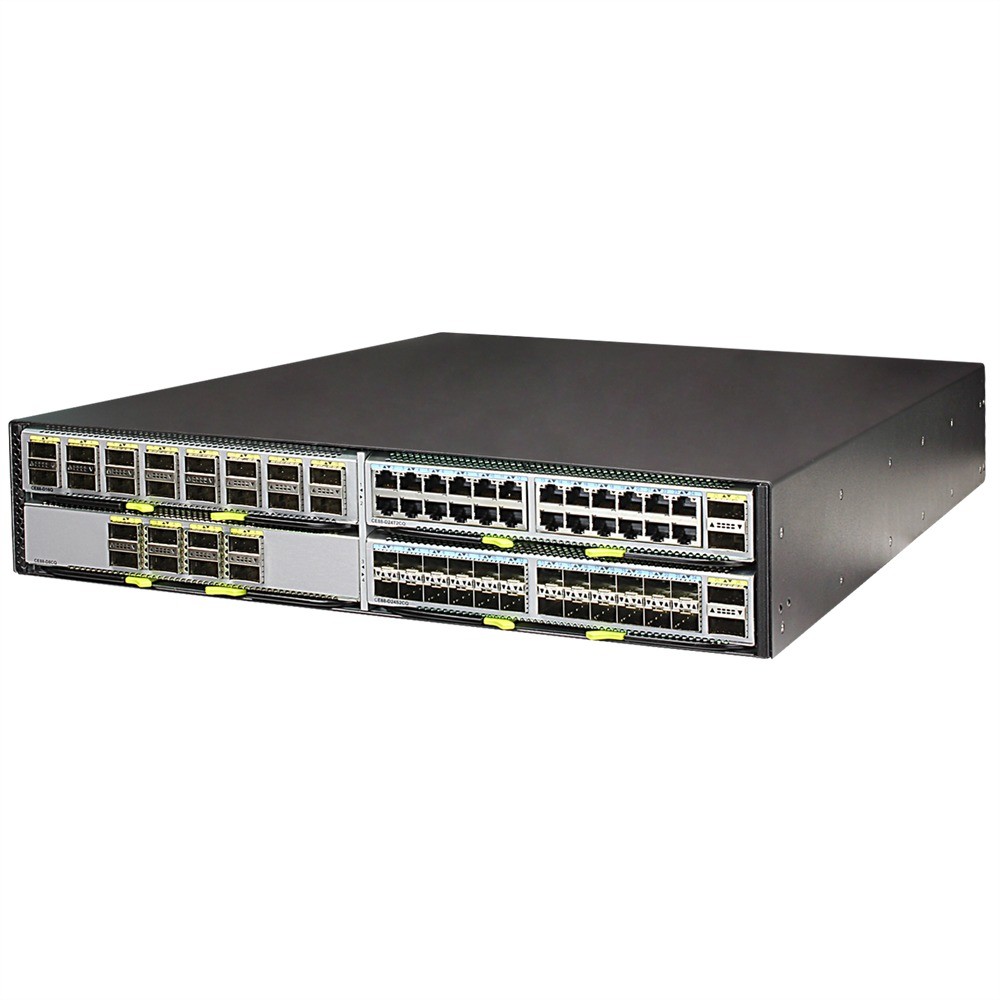

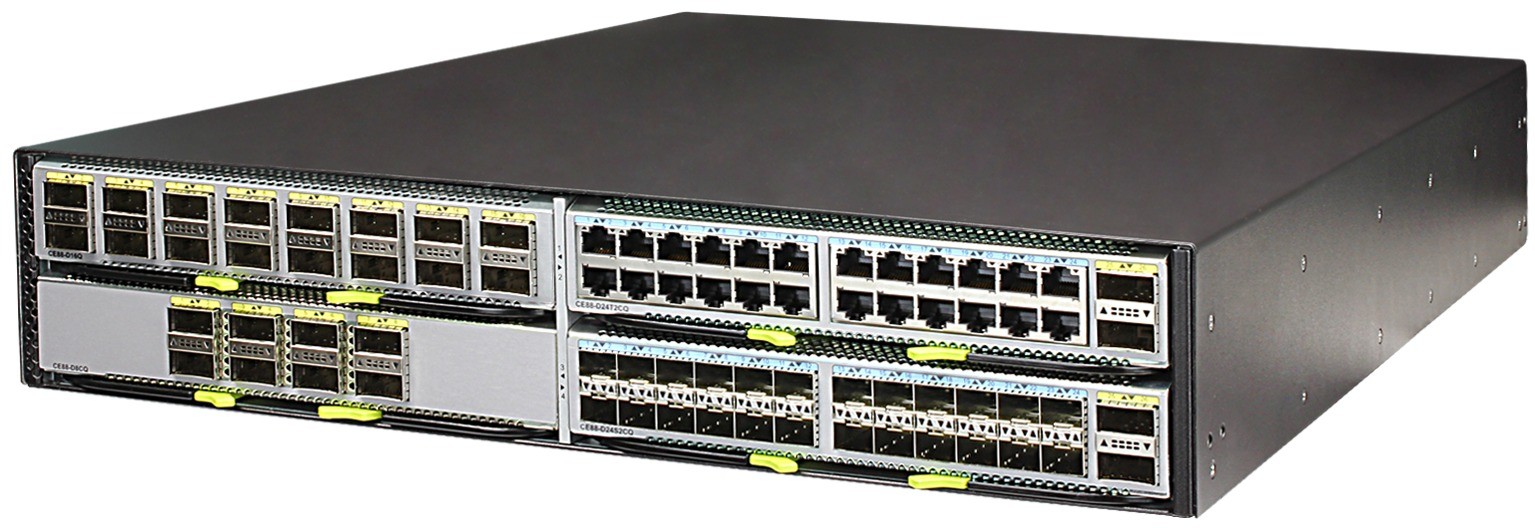

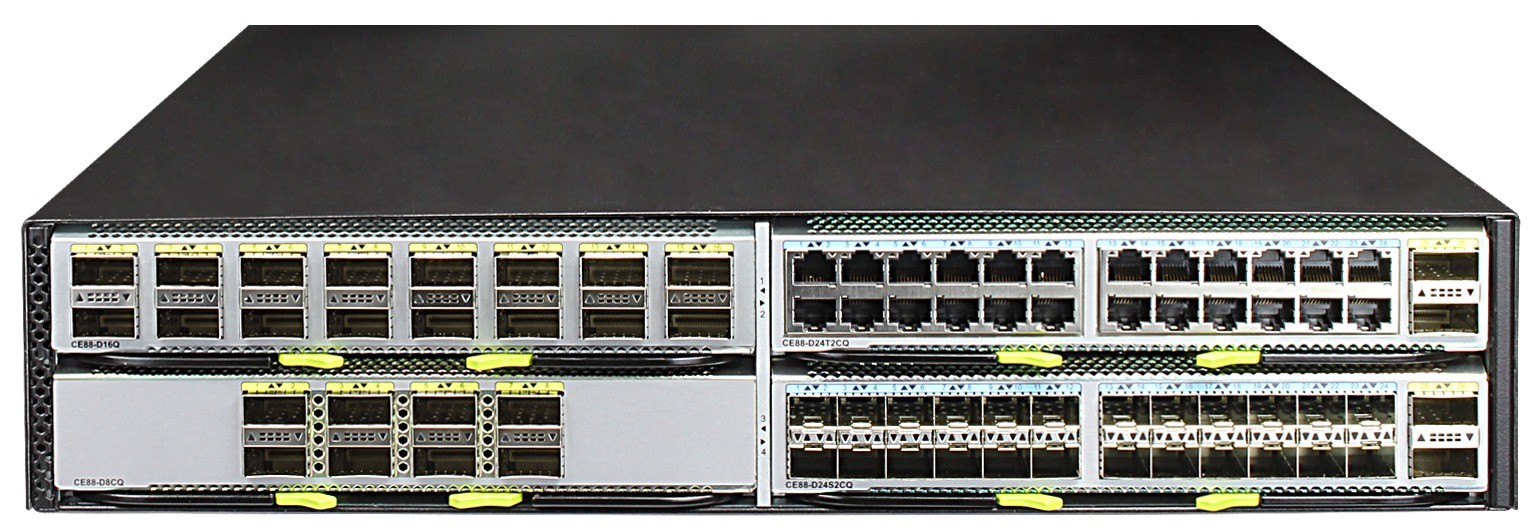

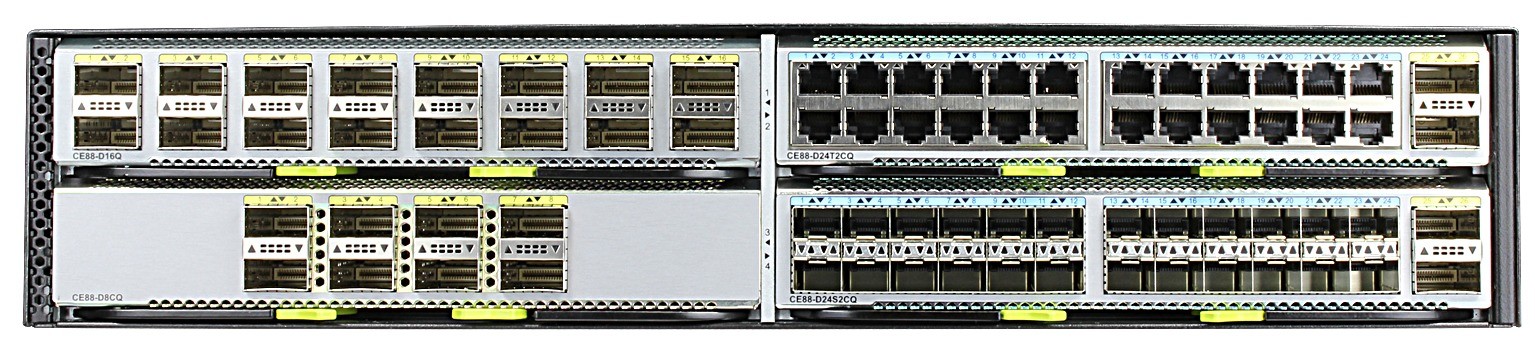

The Huawei CE8861-4C-EI-B is an advanced mainframe equipped to deliver high-performance networking solutions. Featuring 4 subcard slots, dual AC power modules, and a dual fan box with port-side intake, this mainframe is designed for reliability and efficiency. Suitable for various demanding environments, it's a top choice for network administrators seeking robust infrastructure.
| Model | CE8861-4C-EI-B |
| Subcard Slots | 4 |
| Power Module | 2*AC |
| Fan Box | 2 |
| Intake | Port-side |
| Subcard | CE88-SC-4X24-S |
| AC Power Module | CE88-PWR-AC2000W |
| Fan Box | CE88-FAN-BOX |
| Model | CE8861-4C-EI-B | CE8860-4C-EI-A | CE8863-4C-EI-C |
| Subcard Slots | 4 | 3 | 5 |
| Power Module | 2*AC | 1*DC | 2*AC |
| Fan Box | 2 | 1 | 3 |
| Intake Type | Port-side | Rear-side | Port-side |
| Cooling Efficiency | High | Medium | High |
CE8861-4C-EI-B Specifications |
|
| Brand | Huawei |
| Model | CE8861-4C-EI-B |
| Form Factor | Mainframe |
| Subcard Slots | 4 |
| Power Modules | 2 x AC Power Module |
| Fan Box | 2 |
| Cooling Method | Port-side Intake |
| Dimensions (HxWxD) | 451.2 mm x 442 mm x 700 mm |
| Port Types | Supports various types depending on subcards |
| Max Power Consumption | 1250 Watts |
| Operating Temperature | 0??C to 45??C |
| Storage Temperature | -40??C to 70??C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Airflow Direction | Port-side Intake |
| AC Voltage Range | 100V-240V AC |
| Heat Dissipation | 4266.79 BTU/hr |
| Management Protocol | SNMP, CLI, Web-based |
| Network Security | MAC security, ACL, Secure Boot |
| Software Features | IPv4/IPv6, MPLS, OSPF, BGP, QoS |
| Warranty | 1 Year |
