| Place of Origin: | Fujian, China |
|---|---|
| Brand Name: | H3C |
| Model Number: | H3C S5700-24TP-SI-DC switch |
| Minimum Order Quantity: | 1 unit |
| Price: | $1,000.00/pieces 1-9 pieces |
| Private Mold: | NO | Products Status: | Stock, Used, Stock |
|---|---|---|---|
| Ports: | ≥ 48 | Transmission Rate: | 10/100/1000Mbps |
| Function: | LACP, SNMP | Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 56 Gb/s | Product Name: | H3C S5700-24TP-SI-DC Switch |
| Type: | Rack |
Overview
Huawei S5700-SI series are gigabit Layer 3 Ethernet switches. The S5700-24TP-SI-AC supports 20 10/100/1000BASE-T ports and 4 combo ports (10/100/1000BASE-T (PoE+) + 100/1000BASE-X). Quick Specs Figure 1 shows the appearance of Huawei S5700-24TP-SI-AC switch.
Huawei S5700-24TP-SI-DC with 24 10/100/1000BASE-T ports, 4 of which are dual-purpose 10/100/1000BASE-T or 100/1000BASE-X ports, is one of the Huawei S5700 series switches. The S5700 gigabit enterprise switch is next-generation energy-saving switch developed by Huawei to meet the demand for high bandwidth access and Ethernet multi-service aggregation. With 24 GE ports and 2 extended slots, it provides a large switching capacity and highdensity GE ports to implement 10 Gbit/s upstream transmissions, widely used in various application scenarios like enterprise park access, convergence, gigabit access of data center application scenarios.

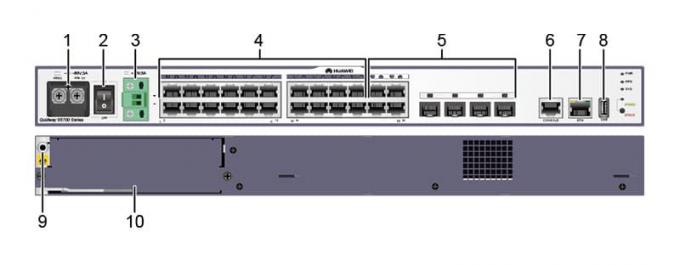

S5700-24TP-SI-DC appearance and structure
|
1. DC power terminal |
6. One console port |
|
2. Power switch |
7. One ETH management port |
|
3. Backup power socket |
8. One USB port |
|
4. Twenty 10/100/1000BASE-T ports |
9. ESD jack |
|
5. Four combo ports (10/100/1000BASE-T + 100/1000BASE-X) |
10. Rear card slot |
S5700-24TP-SI-DC Datasheet
|
Item |
S5700-24TP-SI-DC |
|
Fixed port |
24 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP ports |
|
Extended slot |
One extended slot for a stack card |
|
Forwarding performance |
36 Mpps |
|
VLAN |
4K VLANs |
|
Guest VLAN and voice VLAN |
|
|
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports |
|
|
1:1 and N:1 VLAN Mapping |
|
|
Reliability |
RRPP ring topology and RRPP multi-instance |
|
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover |
|
|
SEP |
|
|
E-Trunk |
|
|
STP, RSTP, and MSTP |
|
|
BPDU protection, root protection, and loop protection |
|
|
MPLS features |
Not supported |
|
IP routing |
Static routing, ECMP |
|
RIPv1, RIPv2 and RIPng |
|
|
IPv6 features |
Neighbor Discovery (ND) |
|
Path MTU (PMTU) |
|
|
IPv6 ping, IPv6 tracert, and IPv6 Telnet |
|
|
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type |
|
|
MLD v1/v2 snooping |
|
|
6to4 tunnel, ISATAP tunnel, and manually configured tunnel |
|
|
Multicast |
IGMP v1/v2/v3 snooping and IGMP fast leave |
|
Multicast forwarding in a VLAN and multicast replication between VLANs |
|
|
Multicast load balancing among member ports of a trunk |
|
|
Controllable multicast |
|
|
Port-based multicast traffic statistics |
|
|
QoS/ACL |
Rate limiting on packets sent and received by an interface |
|
Packet redirection |
|
|
Port-based traffic policing and two-rate three-color CAR |
|
|
Eight queues on each port |
|
|
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms |
|
|
Re-marking of the 802.1p priority and DSCP priority |
|
|
Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID |
|
|
Rate limiting in each queue and traffic shaping on ports |
|
|
Security |
User privilege management and password protection |
|
DoS attack defense, ARP attack defense, and ICMP attack defense |
|
|
Binding of the IP address, MAC address, interface, and VLAN |
|
|
Port isolation, port security, and sticky MAC |
|
|
Blackhole MAC address entries |
|
|
Limit on the number of learned MAC addresses |
|
|
802.1x authentication and limit on the number of users on an interface |
|
|
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC |
|
|
SSH v2.0 |
|
|
Hypertext Transfer Protocol Secure (HTTPS) |
|
|
CPU defense |
|
|
Blacklist and whitelist |
|
|
OAM |
Supports |
|
Management and maintenance |
Virtual cable test |
|
Stacking |
|
|
MAC Forced Forwarding (MFF) |
|
|
Port mirroring and RSPAN (remote port mirroring) |
|
|
Remote configuration and maintenance by using Telnet |
|
|
SNMP v1/v2/v3 |
|
|
RMON |
|
|
Web NMS |
|
|
HGMP |
|
|
System logs and alarms of different levels |
|
|
GVRP |
|
|
MUX VLAN |
|
|
DDR memory |
256 MB |
|
Flash memory |
32 MB |
|
Mean time between failures (MTBF) |
37 years |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Surge protection: Service port protection |
Non-PoE switch: ±2 kV in common mode |
|
Surge protection: Power supply protection |
Non-PoE switch: DC: ±6 kV in differential mode; ±6 kV in common mode |
|
Stack port |
Two stack ports available on each stack card |
|
Maximum stack bandwidth (bidirectional) |
48 Gbit/s |
|
RPS |
Not supported |
|
PoE |
The PWR series support PoE. |
|
Input DC voltage: Rated input voltage range |
-48 V DC to -60 V DC |
|
Input DC voltage: Maximum voltage range |
-36 V DC to -72 V DC |
|
Maximum system power consumption (100% throughput, 100% PoE loads, full speed of fans) |
S5700-24TP-SI-DC: 40 W |
|
Operating temperature |
0°C to +50°C |
|
Storage temperature |
-40°C to +70°C |
|
Noise under normal temperature (27°C, sound power) |
S5700-24TP-SI-DC: 0 |
|
Relative humidity |
5% RH to 95% RH, noncondensing |
|
Operating altitude |
Non-PoE switch: DC: 0 m to 2000 m |
|
EMC |
CISPR22 Class A |
|
CISPR24 |
|
|
EN55022 Class A |
|
|
EN50024 |
|
|
ETSI EN 300 386 Class A |
|
|
CFR 47 FCC Part 15 Class A |
|
|
ICES 003 Class A |
|
|
AS/NZS CISPR22 Class A |
|
|
IEC61000-4-2 |
|
|
ITU-T K 20 |
|
|
ITU-T K 44 |
|
|
Environmental standards |
RoHS |
|
REACH |
|
|
WEEE |
|
|
Security |
IEC 60950-1 |
|
EN 60950-1/A11/A12 |
|
|
UL 60950-1 |
|
|
CSA C22.2 No 60950-1 |
|
|
AS/NZS 60950.1 |
|
|
Laser safety |
IEC60825-1 |
|
IEC60825-2 |
|
|
EN60825-1 |
|
|
EN60825-2 |
|
|
Dimensions (W x D x H) |
442.0 mm x 220.0 mm x 43.6 mm |
|
Fully loaded |
≤ 8.5 kg |
|
Empty loaded |
≤ 5 kg |
