| Place of Origin: | Fujian, China |
|---|---|
| Brand Name: | H3C |
| Model Number: | HW S5720-36c-ei-28s-ac Switches |
| Minimum Order Quantity: | 1 unit |
| Price: | $1,700.00/pieces 1-9 pieces |
| Private Mold: | NO | Products Status: | Stock, Used, Stock |
|---|---|---|---|
| Ports: | ≥ 48 | Transmission Rate: | 10/100/1000Mbps |
| Function: | LACP, SNMP | Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 56 Gb/s | Product Name: | HW S5720-36c-ei-28s-ac Switches |
| Type: | Rack |

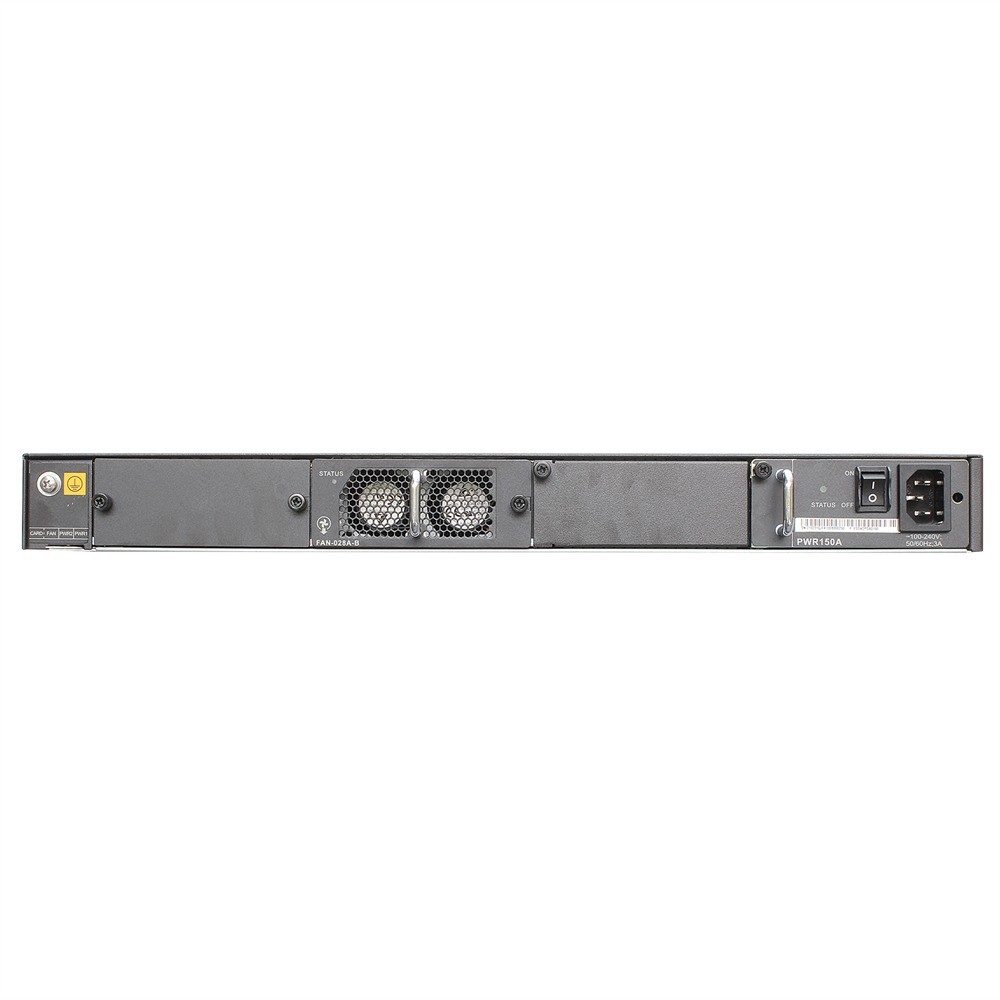

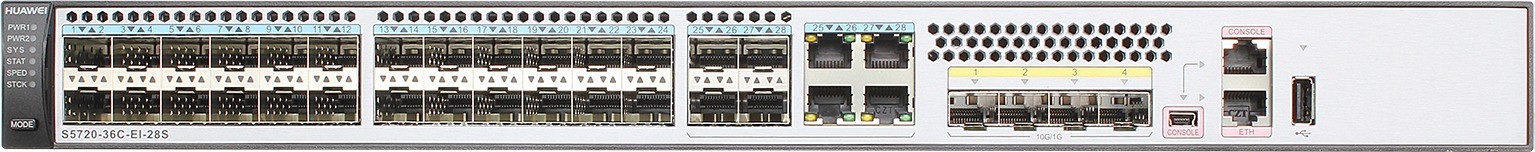

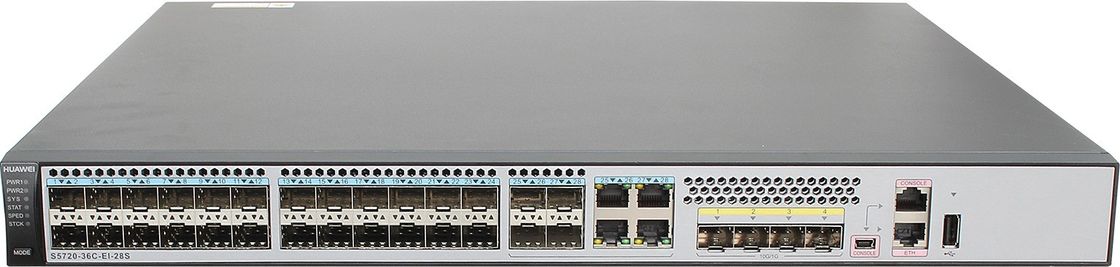

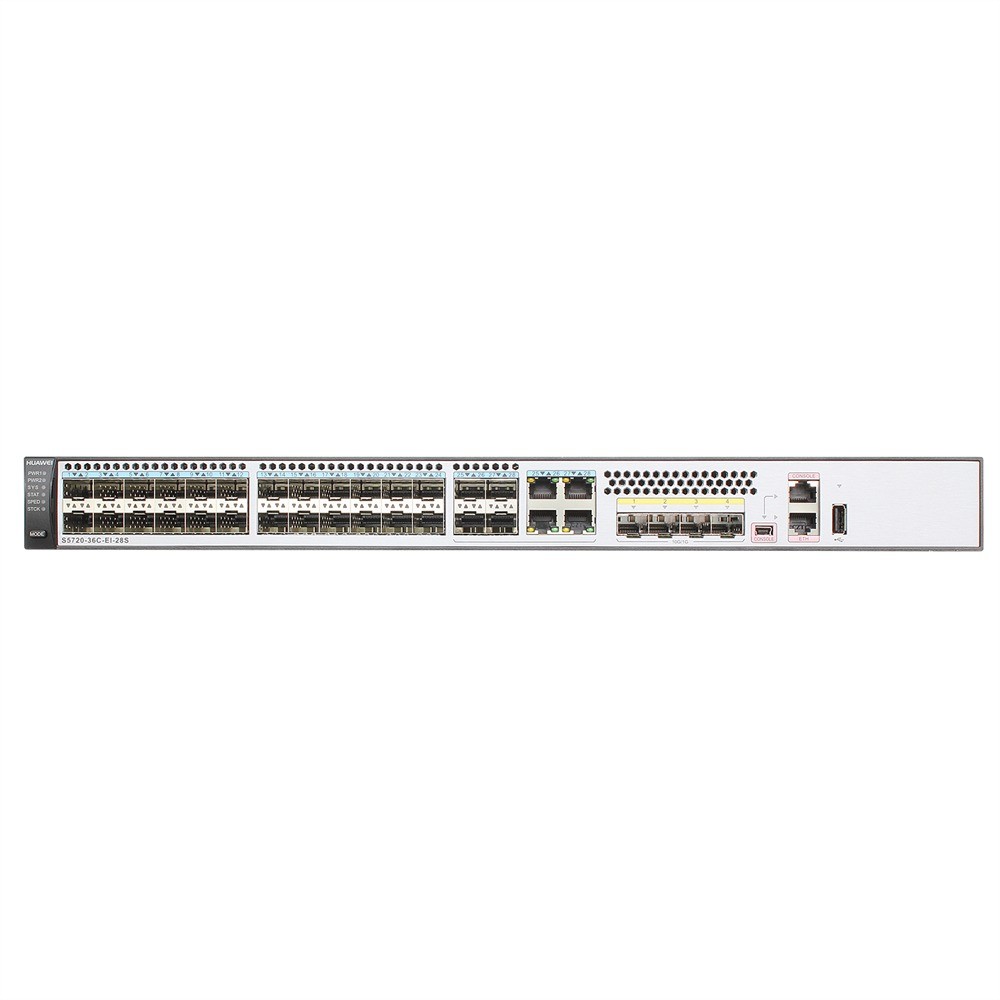

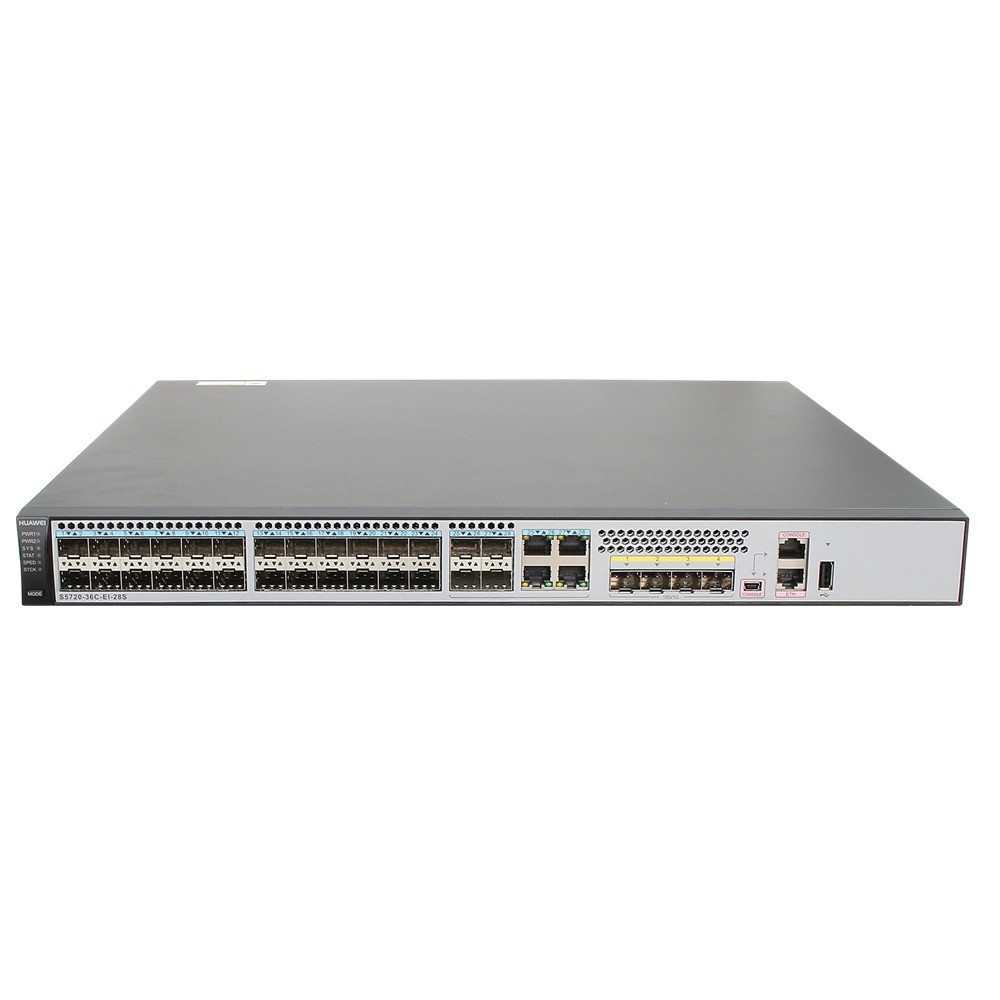

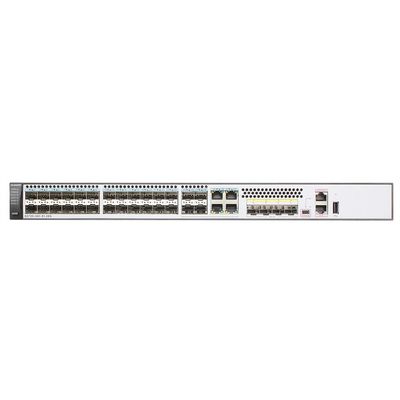

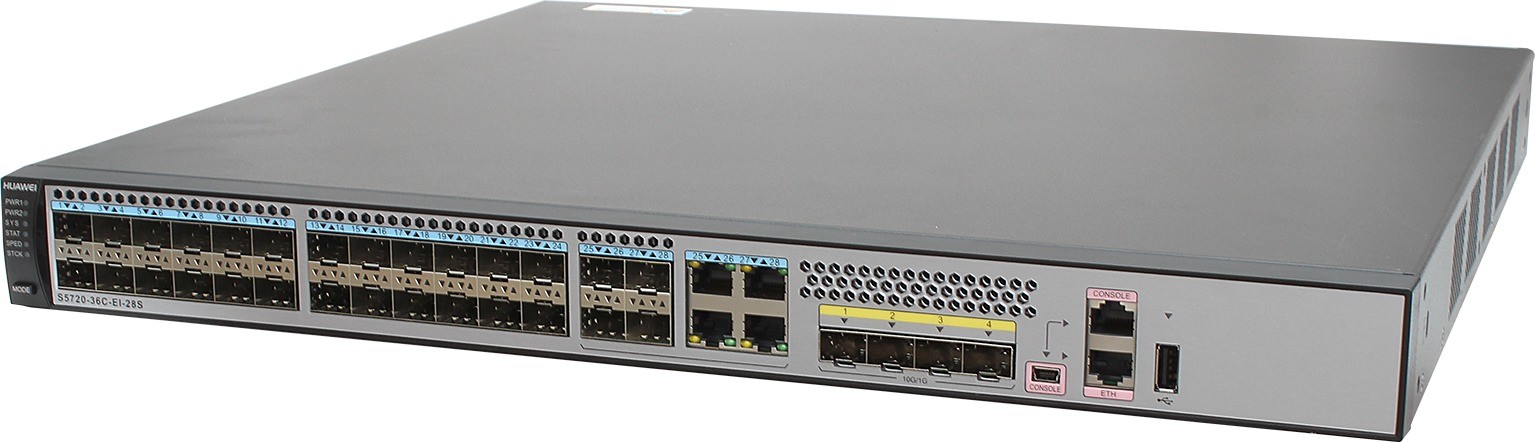

Huawei S5720-36C-EI-28S-DC Switch is an Enhanced Gigabit Switch with 28 Gig SFP, 4 of which are dual-purpose 10/100/1000, 4 10 Gig SFP+ and Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
The switch has Forwarding performance:132 Mpps and Switching capacity: 598 Gbit/s. S5720-EI series switches provide flexible GE access ports (including optical, electrical, and combo ports) and 10GE uplink ports. Built on next-generation high-performance processors and the Huawei Versatile Routing Platform (VRP), the S5720-EI provides larger table sizes and higher hardware processing capabilities than equivalent switches. Besides, it provides comprehensive service processing capabilities, enhanced security control, and mature IPv6 features, and supports MACsec, intelligent stack (iStack), flexible Ethernet networking, and easy operations and maintenance (O&M). S5720-36C-EI-28S-DC also supports the multi-VPN-instance CE (MCE) function, which allows users in different VPNs to connect. The switch supports large multi-instance routing tables to isolate users in different VPNs. Users in multiple VPNs connect to a provider edge (PE) device through the same physical port on the switch, which reduces the cost on VPN network deployment. The S5720-EI supports Multiprotocol Label Switching (MPLS) L3VPN, MPLS L2VPN (VPWSVPLS), MPLS-TE, and MPLS QoS. It is one of a few cost-effective MPLS-capable fixed switches.
| Item | Description |
| Model | S5720-36C-EI-28S-DC |
| Port | 28 Gig SFP, 4 of which are dual-purpose 10/100/1000, 4 10 Gig SFP+ |
| Part number | 02350NHN |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 85.45 years when no card is configured; 78.2 years when a 2-port 10GE SFP+ interface card is configured; 75.87 years when a 2-port 10GE RJ45 interface card is configured; 76.05 years when a stack card is configured |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Service ports on front panel: ±6 kV in common mode |
| Ports on the 2-port 10GE RJ45 rear interface card: ±2 kV in common mode | |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode | |
| Weight (with packaging) | 9.7 kg (21.39 lb) |
| Stack ports | Ports on the 2-port 10GE SFP+ rear interface card |
| Ports on the 2-port 10GE RJ45 rear interface card | |
| Ports on the 2-port QSFP+ rear stack card | |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| -48 V DC to -60 V DC | |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| -36 V DC to -72 V DC | |
| Maximum power consumption (100% throughput, full speed of fans) | 83.9 W |
| Typical power consumption (30% of traffic load) | 47.86 W (without card) |
| Tested according to ATIS standard | 55.35 W (with 2*10GE optical card) |
| EEE enabled | 60.25 W (with 2*QSFP+ stack card) |
| No PoE power consumption | 63.5 W (with 2*10GE electrical card) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 51.2 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | AC power modules configured: 0-5000 m (0-16404 ft.) |
| DC power modules configured: 0-2000 m (0-6562 ft.) | |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) |
