| Place of Origin: | Fujian, China |
|---|---|
| Brand Name: | H3C |
| Model Number: | H3C Switches S5720-36C-PWR-EI-AC |
| Minimum Order Quantity: | 1 unit |
| Price: | $4,200.00/pieces 1-9 pieces |
| Private Mold: | NO | Products Status: | Stock, Used, Stock |
|---|---|---|---|
| Ports: | ≥ 48 | Transmission Rate: | 10/100/1000Mbps |
| Function: | LACP, SNMP | Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 56 Gb/s | Product Name: | H3C Switches S5720-36C-PWR-EI-AC |
| Type: | Rack |

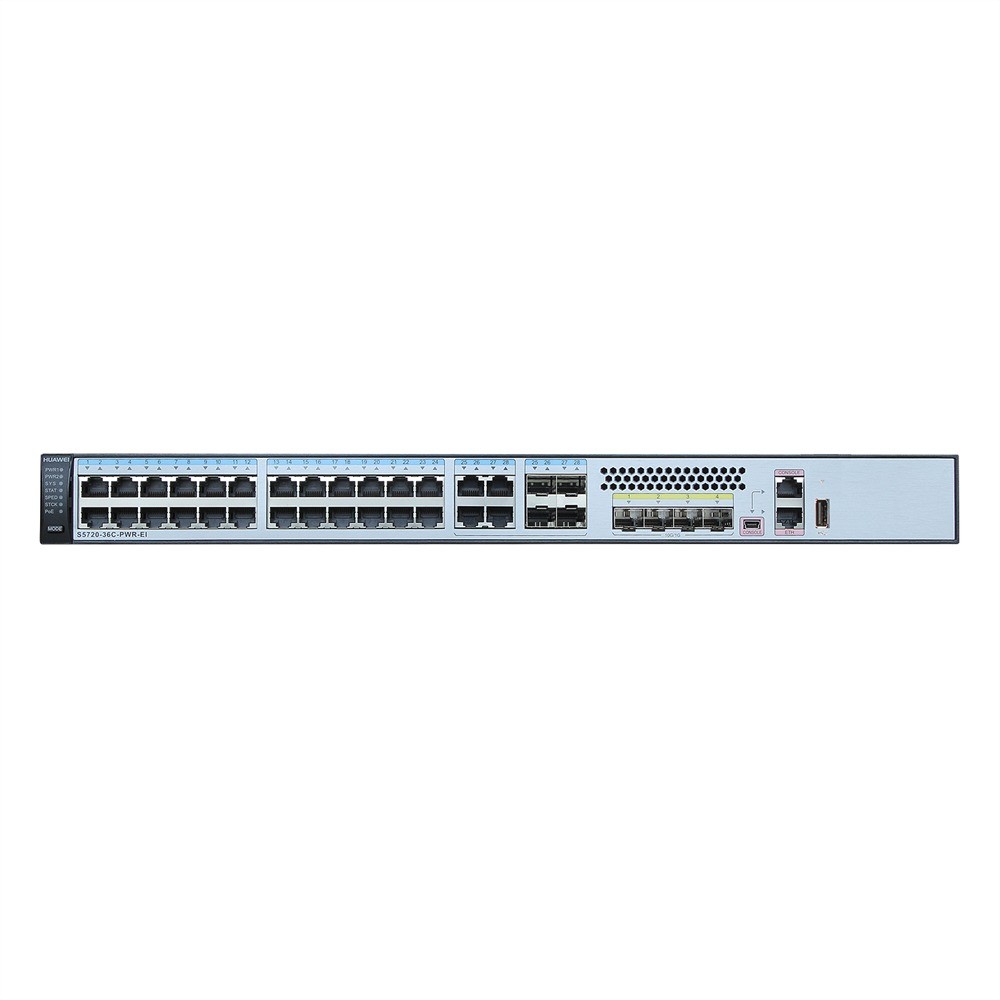

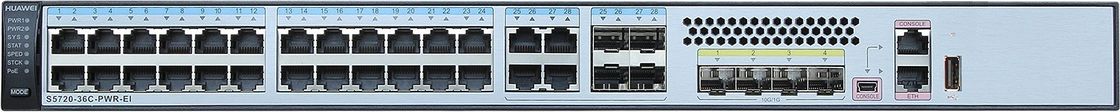

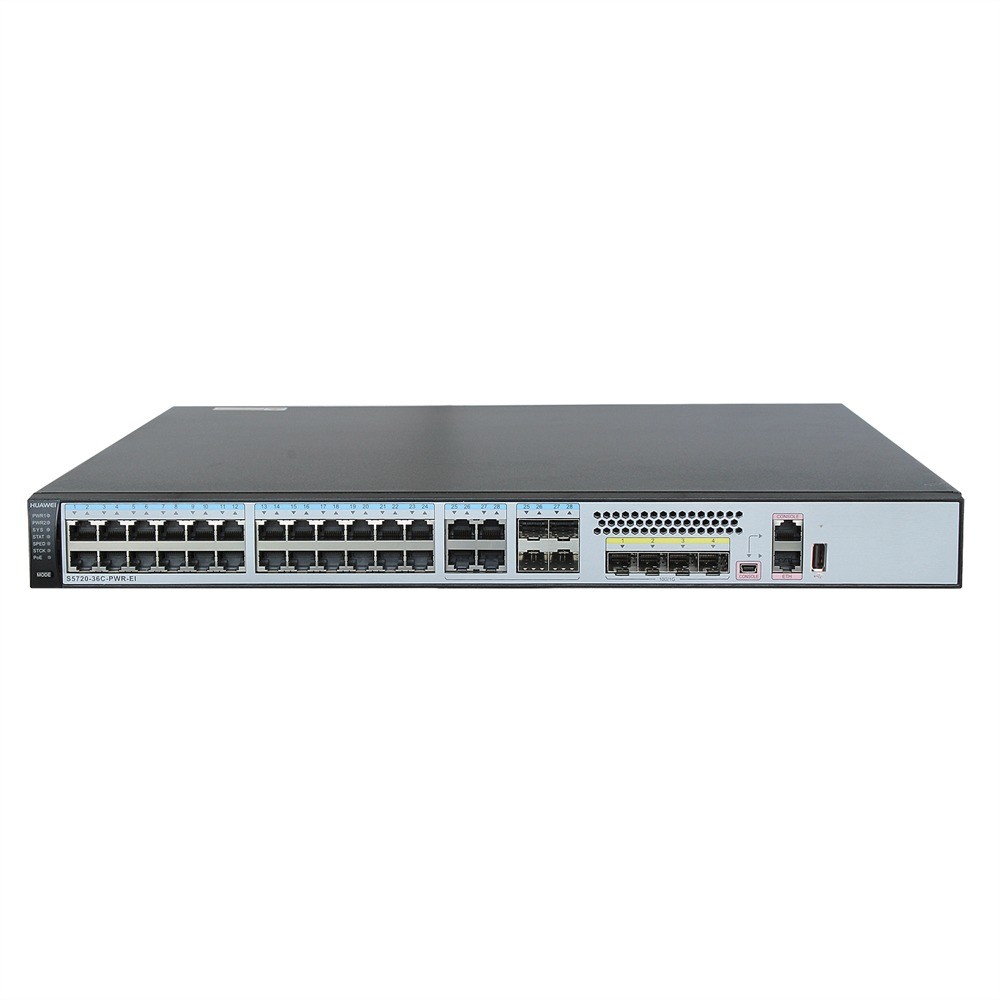

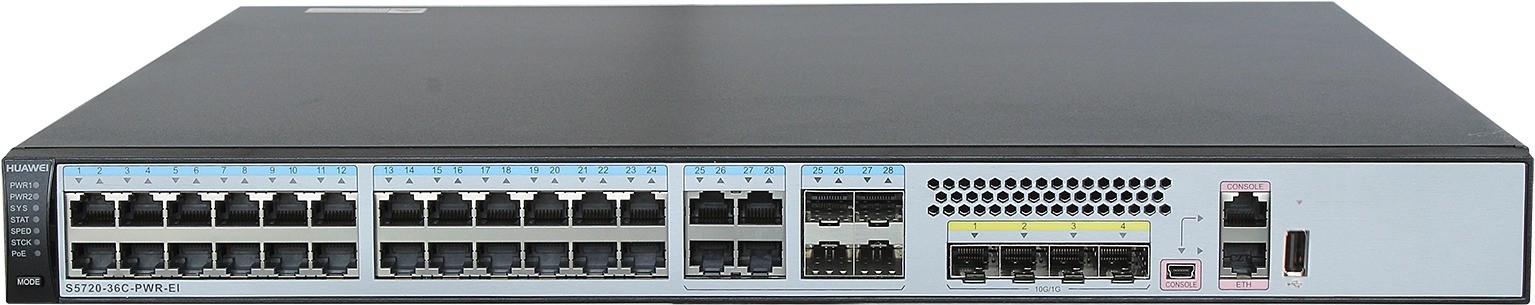

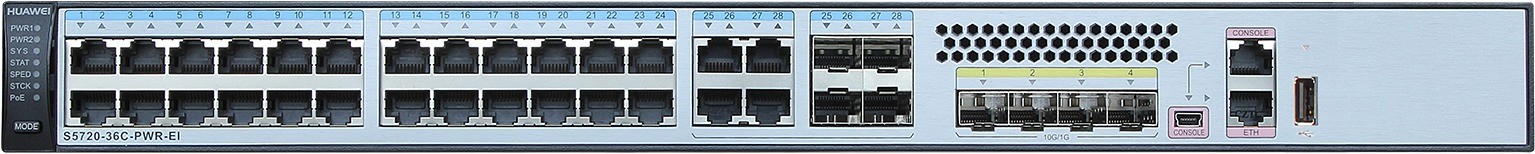

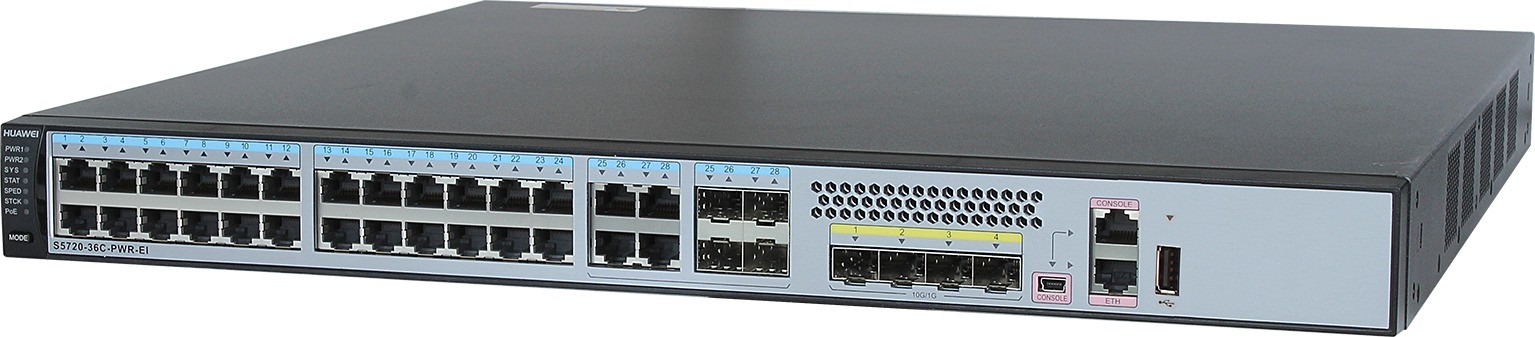

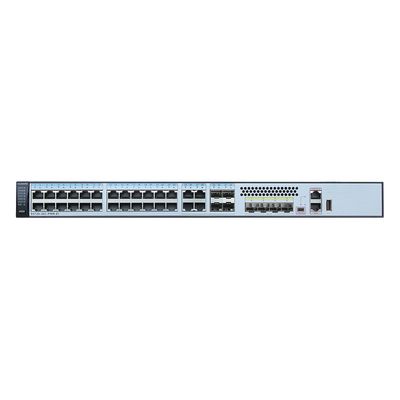

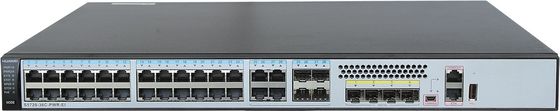

Huawei S5720-36C-PWR-EI-AC Switch is an Enhanced Gigabit Switch with 28 Ethernet 10/100/1000 PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4 10 Gig SFP+ PoE+ and Double hot swappable AC or DC power supplies, one AC power module equipped by default

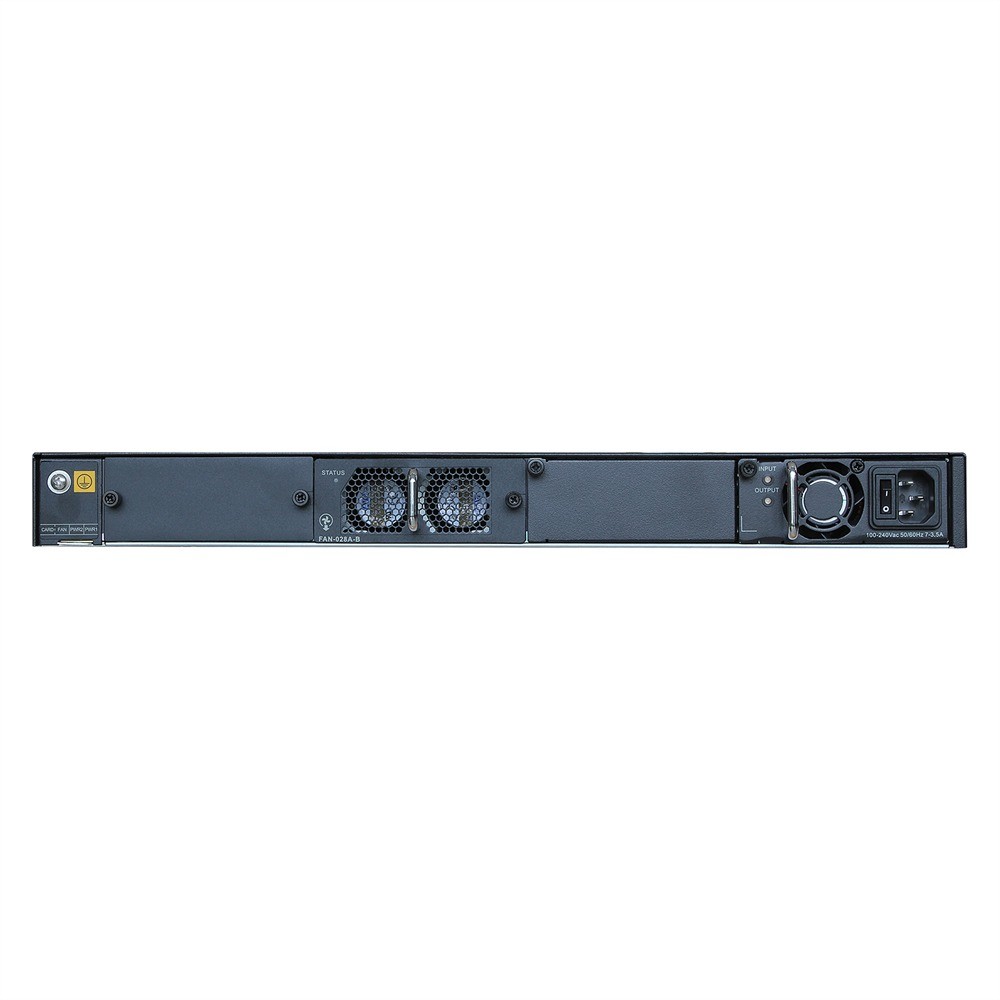

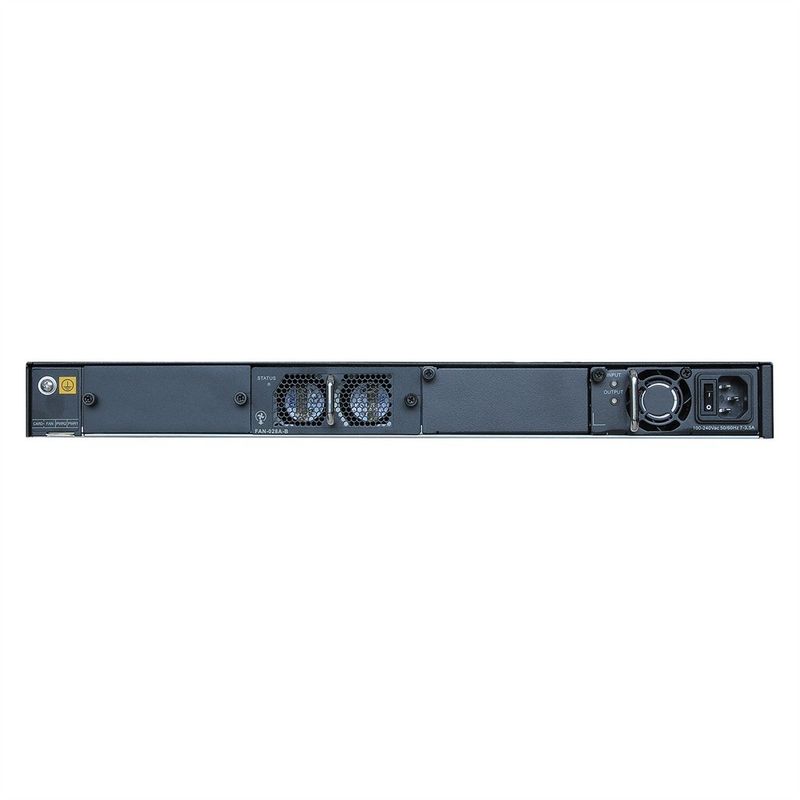

The switch provides flexible all-gigabit access and enhanced 10GE uplink port scalability. Huawei S5720-36C-PWR-EI-AC is widely used as access/aggregation switches in enterprise campus networks or gigabit access switches in data centers. In addition, S5720-EI is equipped with two removable power modules that can work in 1+1 redundancy backup mode. Mixed installation of AC and DC power modules is supported, allowing for flexible configuration of AC or DC power modules according to service requirements. S5720-EI provides two removable fan modules. The fan speed can be adjusted according to working temperatures of the device, improving device reliability. Moreover, S5720-36C-PWR-EI-AC sets up and maintains a DHCP snooping binding table, and discards the packets that do not match the table entries. You can specify DHCP snooping trusted and untrusted ports to ensure that users connect only to the authorized DHCP server.
| Item | Description |
| Model | S5720-36C-PWR-EI-AC |
| Part number | 2359573 |
| Port | 28 Ethernet 10/100/1000 PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4 10 Gig SFP+ PoE+ |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Service ports on front panel: ±6 kV in common mode |
| Ports on the 2-port 10GE RJ45 rear interface card: ±2 kV in common mode | |
| Power supply surge protection | Using 500 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using 650 W DC power modules: ±2 kV in differential mode, ±4 kV in common mode | |
| Weight (with packaging) | 9.9 kg (21.83 lb) |
| Stack ports | Ports on the 2-port 10GE SFP+ rear interface card |
| Ports on the 2-port 10GE RJ45 rear interface card | |
| Ports on the 2-port QSFP+ rear stack card | |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| -48 V DC to -60 V DC | |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| -38.4 V DC to -72 V DC | |
| Maximum power consumption (100% throughput, full speed of fans) | Not providing the PoE function: 78 W |
| 100% PoE loads: 864.3 W (system power consumption: 124.3 W, PoE: 740 W) | |
| Typical power consumption (30% of traffic load) | 48.45 W (without card) |
| Tested according to ATIS standard | 56.14 W (with 2*10GE optical card) |
| EEE enabled | 60.76 W (with 2*QSFP+ stack card) |
| No PoE power consumption | 64.8 W (with 2*10GE electrical card) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 53.7 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification |
