| Place of Origin: | Fujian, China |
|---|---|
| Brand Name: | H3C |
| Model Number: | H3C Switches S5720-36PC-EI-AC |
| Minimum Order Quantity: | 1 unit |
| Price: | $4,200.00/pieces 1-9 pieces |
| Private Mold: | NO | Products Status: | Stock, Used, Stock |
|---|---|---|---|
| Ports: | ≥ 48 | Transmission Rate: | 10/100/1000Mbps |
| Function: | LACP, SNMP | Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 56 Gb/s | Product Name: | H3C Switches S5720-36PC-EI-AC |
| Type: | Rack |

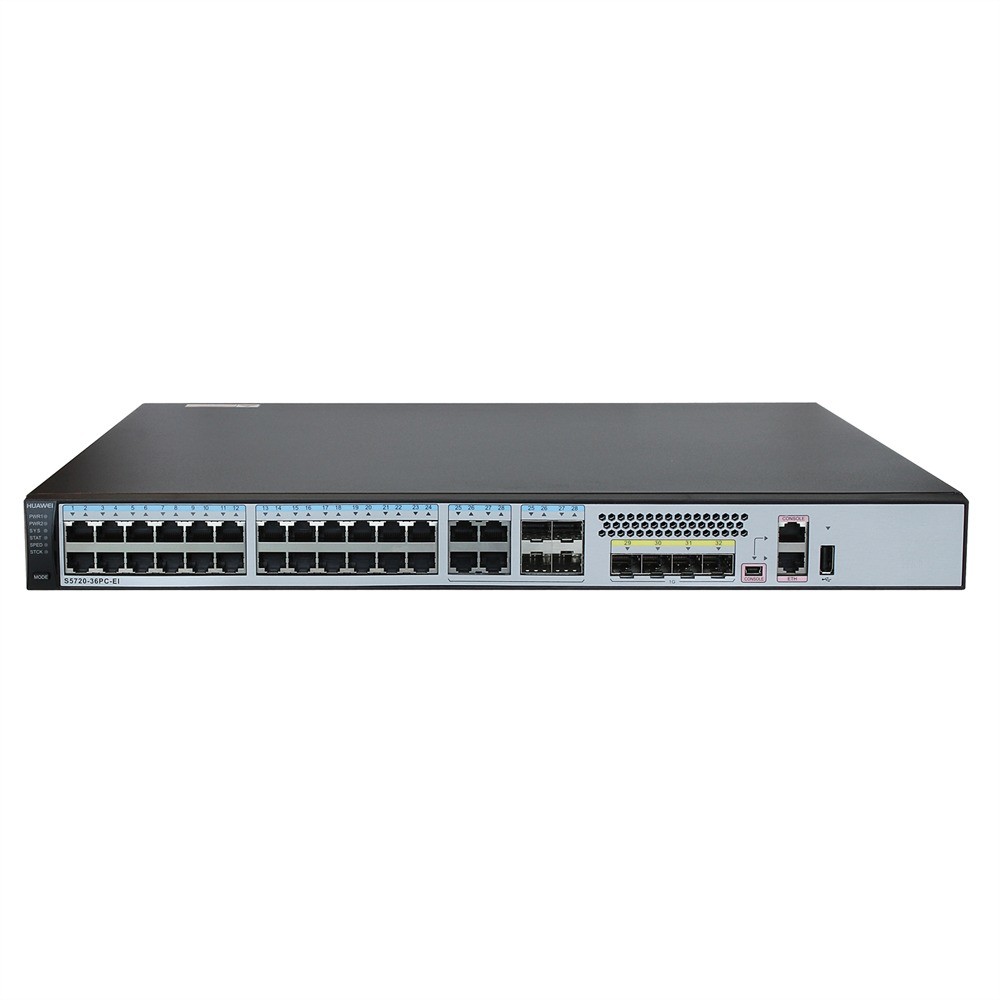

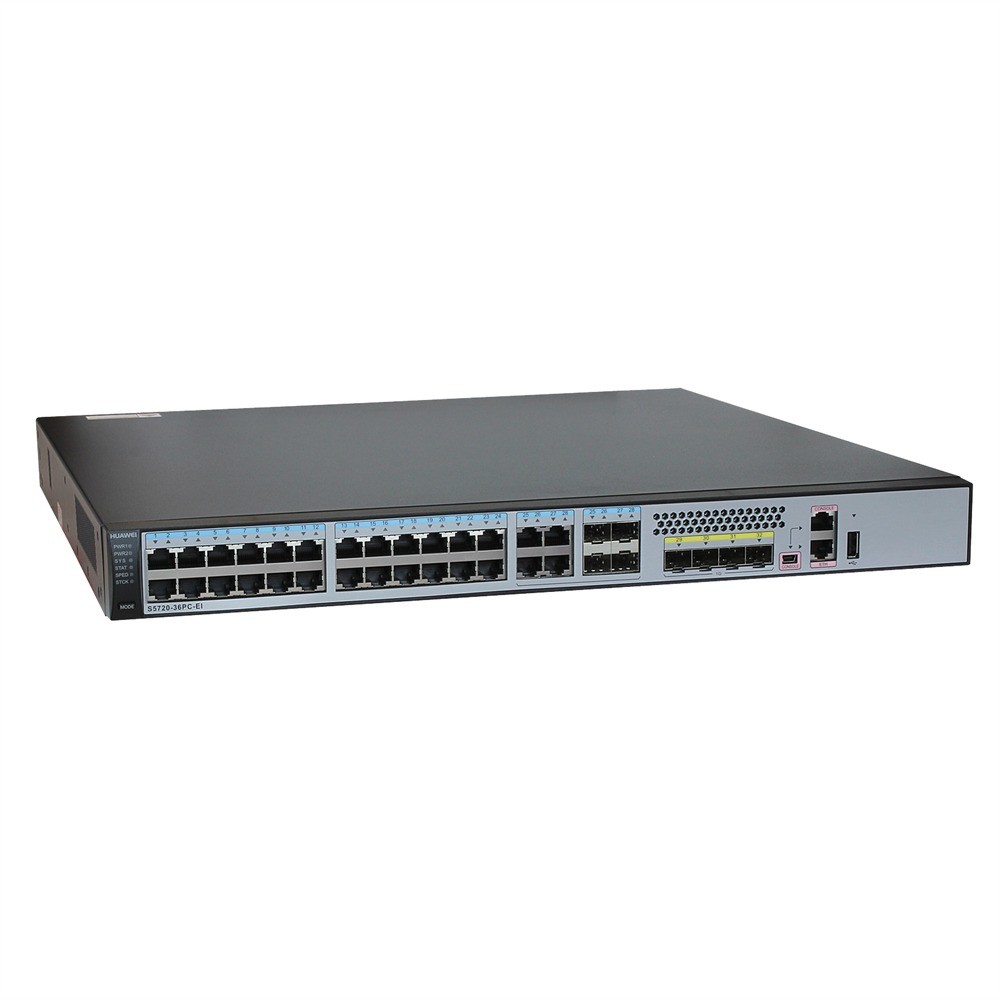

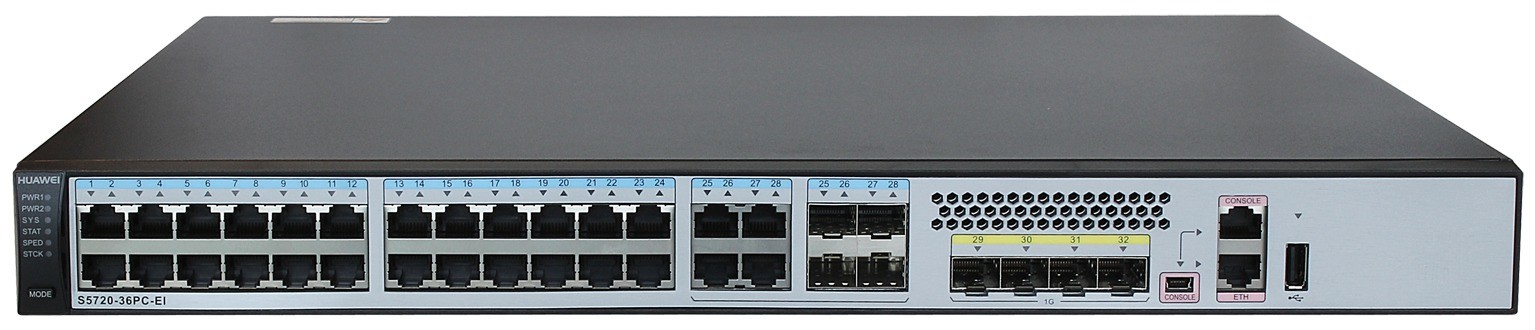

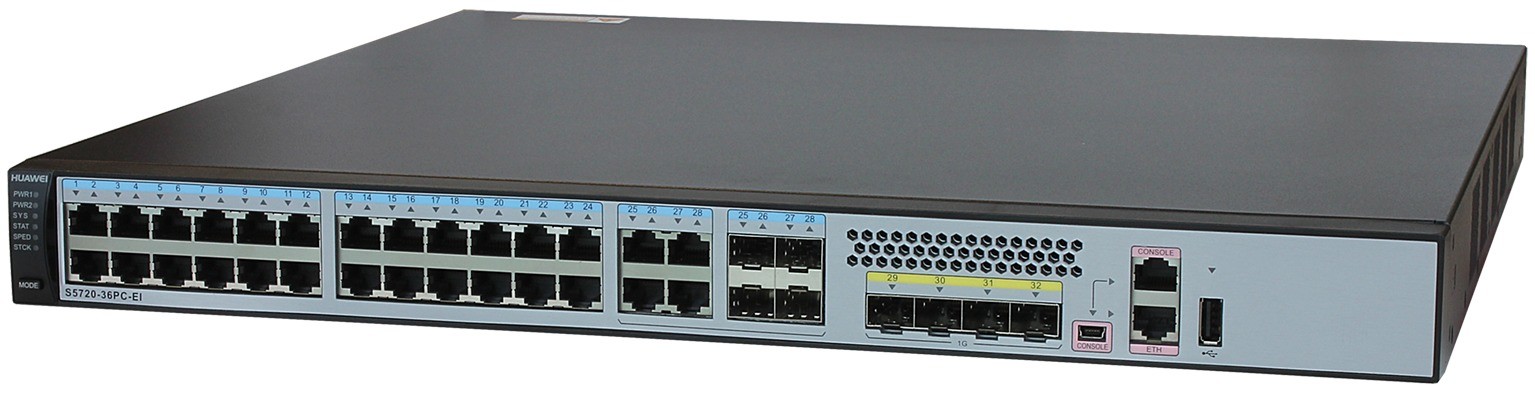

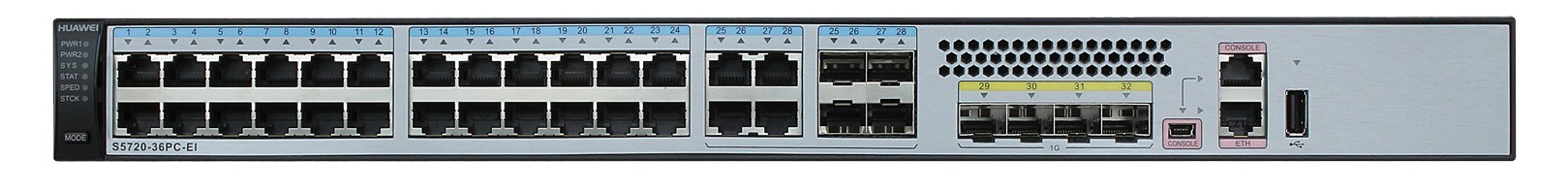

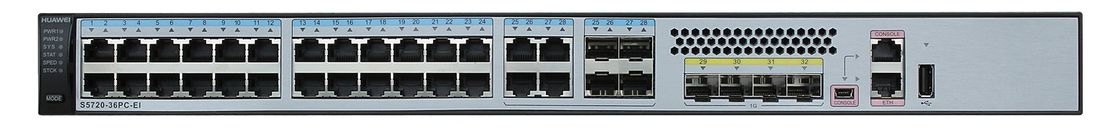

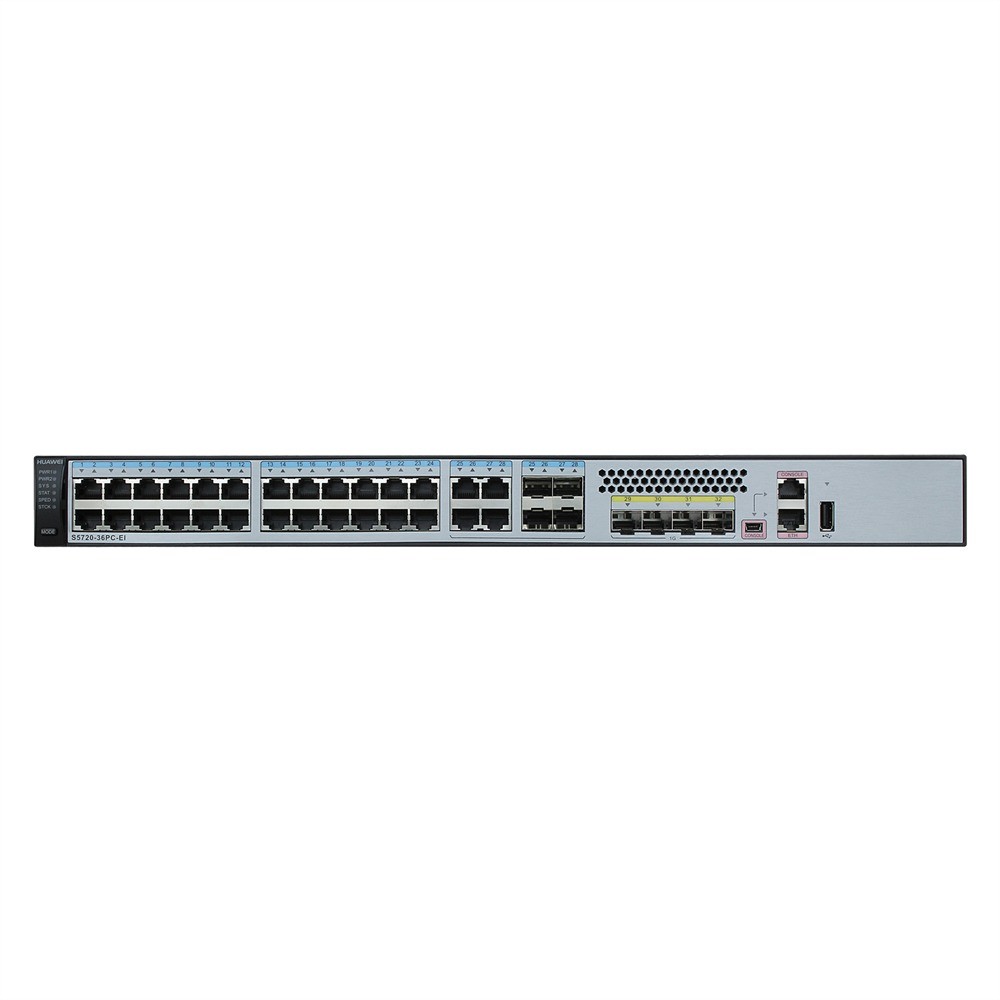

Huawei S5720-36PC-EI-AC supports twenty-eight Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP. It also offers four Gig SFP ports and one interface slot. The interface slot supports optional cards.
Table 1 shows the Quick Specs.
| Product Code | S5720-36PC-EI-AC |
| Downlink Ports |
28 × Ethernet 10/100/1000 ports 4 of which are dual-purpose 10/100/1000 or SFP |
| Uplink Interfaces | 4 × Gig SFP |
| Forwarding Performance | 78 Mpps |
| Switching Capacity | 598 Gbit/s |
| Stack | Supported |
| Stack Ports |
- Ports on the 2-port 10GE SFP+ rear interface card - Ports on the 2-port 10GE RJ45 rear interface card - Ports on the 2-port QSFP+ rear stack card |
| Memory (RAM) | 2 GB |
| Flash | 340 MB |
| Dimensions (W x D x H) | 44.2 cm x 42 cm x 4.44 cm |
| Weight (Kg) |
9.76 Kg |
Table 2 shows the recommended transceivers and cards.
| Model | Description | |
| GE-SFP Optical Transceiver | ||
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45) | |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) | |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) | |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) | |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) | |
| 10GE SFP+ optical transceiver | ||
| SFP-10G-USR | 10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) | |
| OMXD30000 | Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) | |
| OSX010000 | Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) | |
| Cards | ||
| ES5D21X02S01 | 2 × 10 Gig SFP+ Interface Card(used in S5720EI series) | |
| ES5D21X02T01 | 2 × 10 Gig RJ45 Interface Card(used in S5720EI series) | |
| ES5D21VST000 | Dedicated stack card with 2 × QSFP+ interface(Including one PCS of 1M QSFP+ cable ,Used in S5720EI series) | |
Table 3 shows the comparison of Huawei S5720-36PC-EI-AC and S5720-56PC-EI-AC switches.
| Models | S5720-36PC-EI-AC | S5720-56PC-EI-AC |
| Downlink Ports |
28 × Ethernet 10/100/1000 ports 4 of which are dual-purpose 10/100/1000 or SFP |
48 Ethernet 10/100/1000 ports |
| Uplink Ports | 4 × Gig SFP | 4 × Gig SFP |
| Power Supply | AC Power Supply | AC Power Supply |
| Interface Slots | 1 | 1 |
S5720-36PC-EI-AC Specification |
|
| Fixed Port |
28 × Ethernet 10/100/1000 ports 4 of which are dual-purpose 10/100/1000 or SFP 4 × Gig SFP |
| MAC address table | IEEE 802.1d compliance |
| MAC address learning and aging | |
| Static, dynamic, and blackhole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| MAC address entries: S5720-EI series - 64K | |
| VLAN | 4K VLANs |
| Guest VLAN and voice VLAN | |
| GVRP | |
| MUX VLAN | |
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | |
| 1:1 and N:1 VLAN Mapping | |
| SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series) | |
| Ring protection | RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover | |
| SEP | |
| ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series) | |
| STP, RSTP, and MSTP | |
| BPDU protection, root protection, and loop protection | |
| BPDU Tunnel | |
| Reliability | Ethernet OAM (IEEE 802.3ah and 802.1ag) |
| ITU-Y.1731 | |
| DLDP | |
| LACP | |
| E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series) | |
| BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series) | |
| MPLS features | MPLS L3VPN |
| MPLS L2VPN(VPWS/VPLS) | |
| MPLS-TE | |
| MPLS QoS | |
| Notes: supported by S5710-EI, S5700-HI and S5710-HI | |
| IP routing | Static routing |
| RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series) | |
| OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series) | |
| IPv6 features | Neighbor Discovery (ND) |
| Path MTU (PMTU) | |
| IPv6 ping, IPv6 tracert, and IPv6 Telnet | |
| ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type | |
| MLD v1/v2 snooping | |
| 6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series) | |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
| Multicast forwarding in a VLAN and multicast replication between VLANs | |
| Multicast load balancing among member ports of a trunk | |
| Controllable multicast | |
| Port-based multicast traffic statistics | |
| IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series) | |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Packet redirection | |
| Port-based traffic policing and two-rate three-color CAR | |
| Eight queues on each port | |
| WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms | |
| WRED (supported by the S5710-EI and S5700-HI) | |
| Re-marking of the 802.1p priority and DSCP priority | |
|
Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID |
|
| Rate limiting in each queue and traffic shaping on ports | |
| Security | User privilege management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense | |
| Binding of the IP address, MAC address, interface, and VLAN | |
| Port isolation, port security, and sticky MAC | |
| MFF | |
| Blackhole MAC address entries | |
| Limit on the number of learned MAC addresses | |
| 802.1x authentication and limit on the number of users on an interface | |
| AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC | |
| SSH v2.0 | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| CPU defense | |
| Blacklist and whitelist | |
| Access Security | DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security |
| Management and maintenance | Virtual cable test |
| Port mirroring and RSPAN (remote port mirroring) | |
| Remote configuration and maintenance using Telnet | |
| SNMP v1/v2c/v3 | |
| RMON | |
| Web NMS | |
| HGMP | |
| System logs and alarms of different levels | |
| 802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI) | |
| Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches) | |
| NetStream (supported by the S5710-EI, S5700-HI and S5710-HI) | |
| sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series) | |
| Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST) |
| Supports LNP (Similar to DTP) | |
| Supports VCMP (Similar to VTP) | |
| Operating environment | Operating temperature: 0℃–50℃ |
| Relative humidity: 10%–90% (non-condensing) | |
| Input voltage |
AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 47/63 Hz |
| Dimensions (W x D x H) | 44.2 cm x 42 cm x 4.44 cm |
| Power Consumption | S5720-36PC-EI-AC < 74.6W |
