| Place of Origin: | Fujian, China |
|---|---|
| Brand Name: | H3C |
| Model Number: | h3c S5720-50X-Ei-DC S5700 Switch |
| Minimum Order Quantity: | 1 unit |
| Price: | $3,000.00/pieces 1-9 pieces |
| Private Mold: | NO | Products Status: | Stock, Used, Stock |
|---|---|---|---|
| Ports: | ≥ 48 | Transmission Rate: | 10/100/1000Mbps |
| Function: | LACP, SNMP | Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 56 Gb/s | Product Name: | H3c S5720-50X-Ei-DC S5700 Switch |
| Type: | Rack |

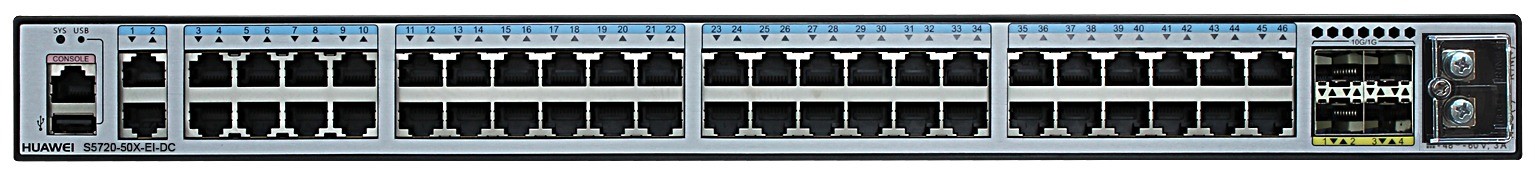

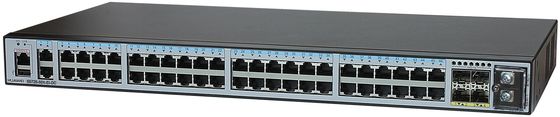

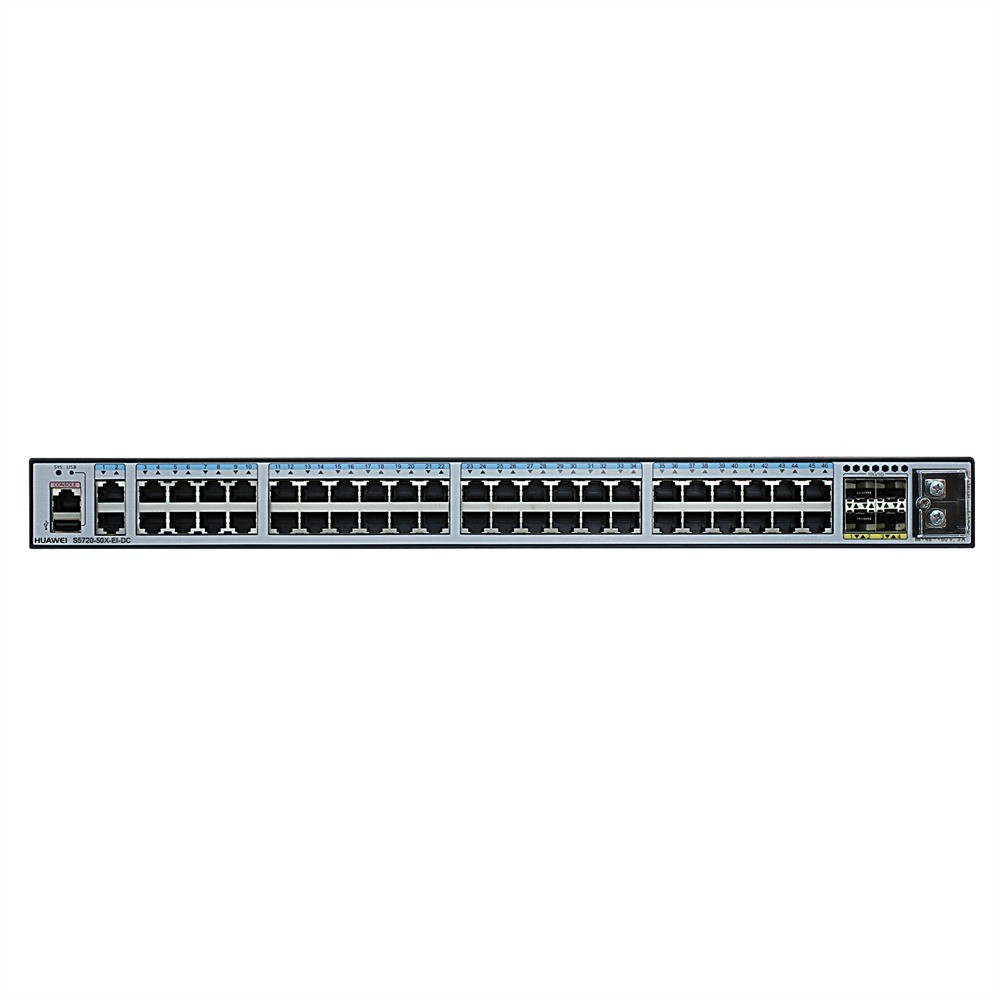

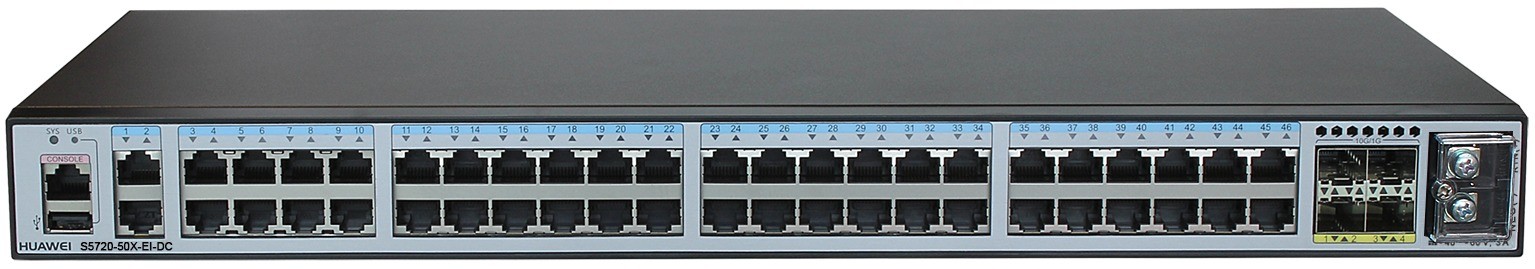

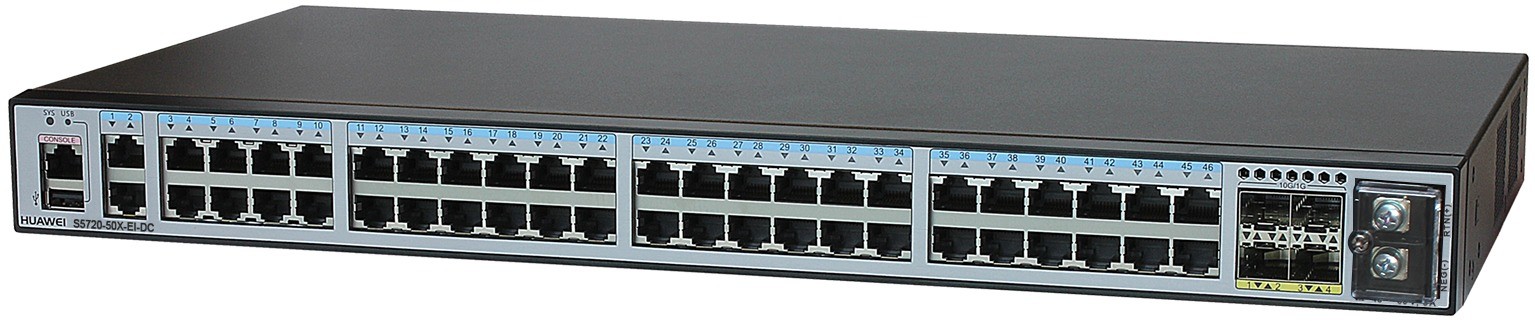

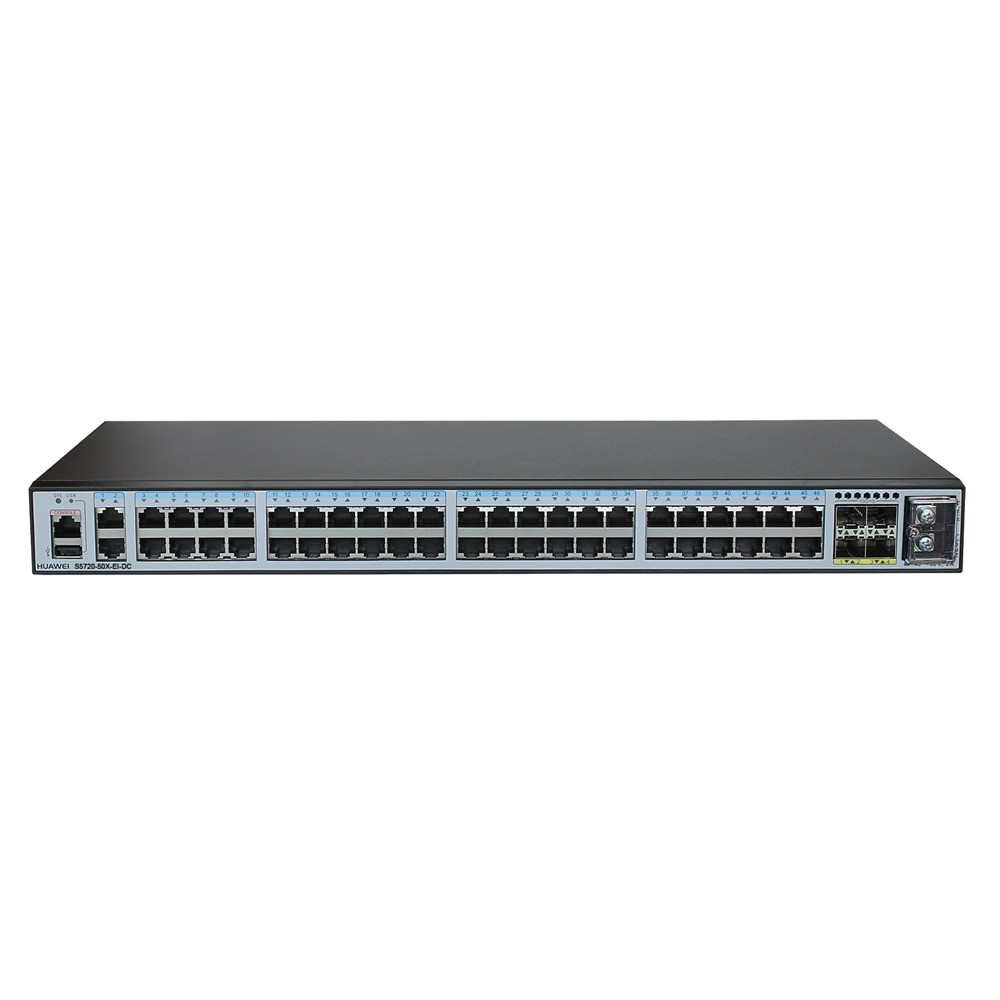

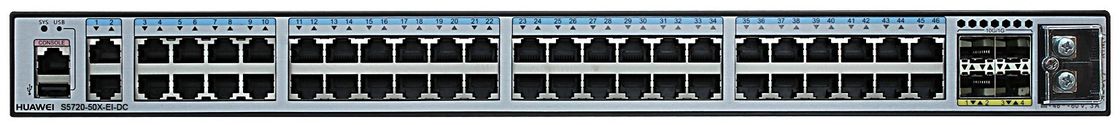

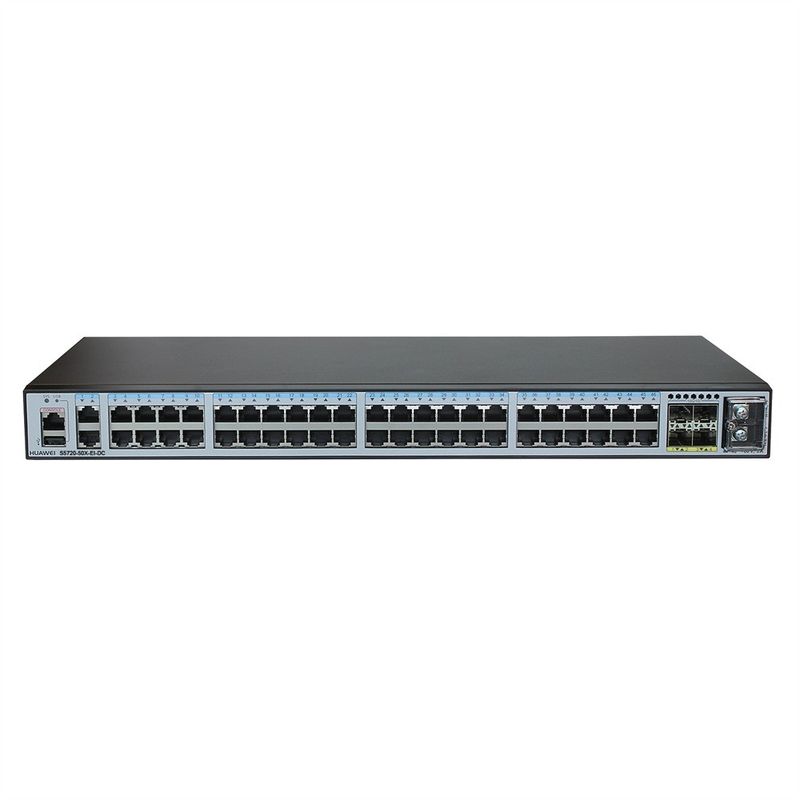

Huawei S5720-50X-EI-DC Switch is an Enhanced Gigabit Switch with 46 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports and AC or DC power supply, supporting RPS, power socket on the front panel
The switch offers Forwarding performance: 129 Mpps and Switching capacity: 598 Gbit/s. It provides flexible all-gigabit access and enhanced 10GE uplink port scalability. Huawei S5720-50X-EI-DC is widely used as access/aggregation switches in enterprise campus networks or gigabit access switches in data centers. In addition, the switch provides excellent QoS capabilities and supports queue scheduling and congestion control algorithms. Moreover, it adopts innovative priority queuing and multi-level scheduling mechanisms to implement fine-grained scheduling of data flows, meeting service quality requirements of different user terminals and services. S5720-EI also provides a series of mechanisms to defend against DoS and user-targeted attacks. DoS attacks are targeted at switches and include SYN flood, Land, Smurf, and ICMP flood attacks. User-targeted attacks include bogus DHCP server attacks, IP/MAC address spoofing, DHCP request flood, and change of the DHCP CHADDR value
| Item | Description |
| Model | S5720-50X-EI-DC |
| Part number | 02350NHD |
| Port | 46 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 74.31 years |
| Mean time to repair (MTTR) | 2 |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±6 kV |
| Power supply surge protection | ±1 kV in differential mode, ±2 kV in common mode |
| Weight (with packaging) | 4.7 kg (10.36 lb) |

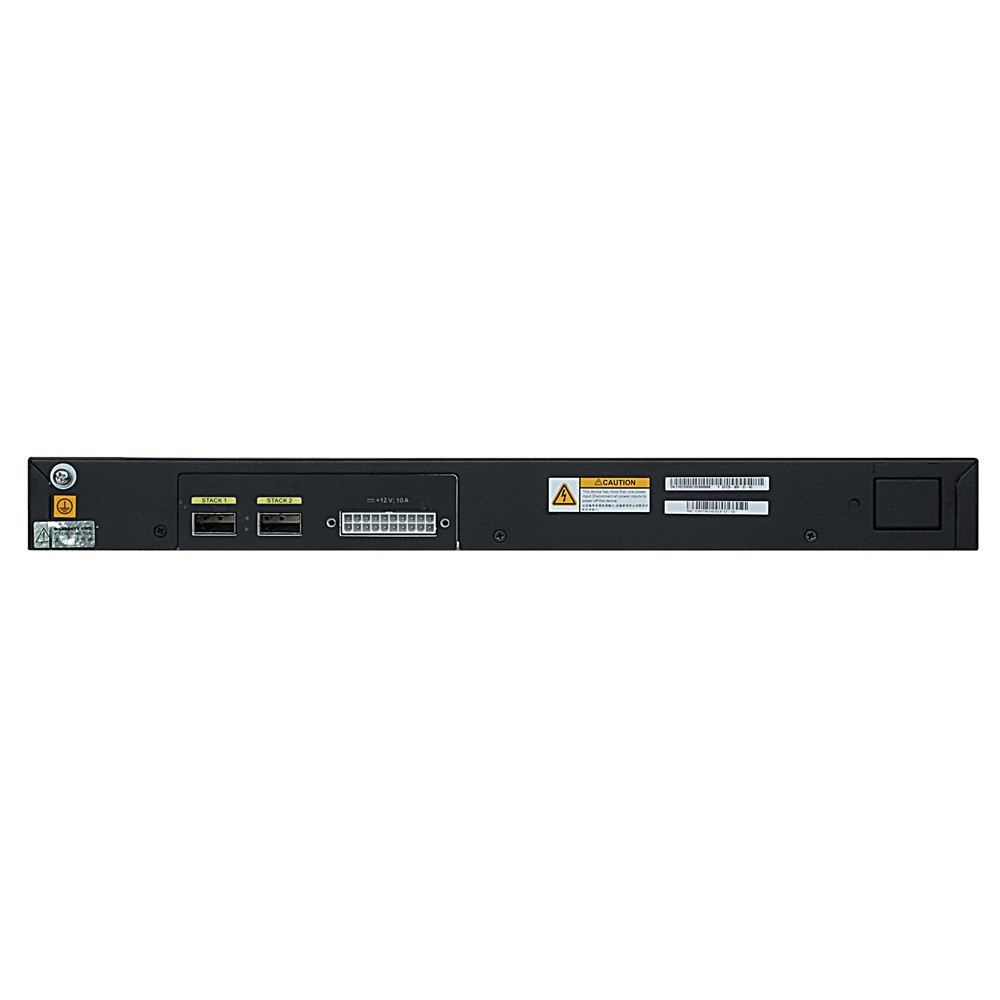

| Stack ports | Two fixed QSFP+ stack ports on the rear card |
| RTC | Supported |
| RPS | Supported |
| PoE | Not supported |
| Rated voltage range | -48 V DC to -60 V DC |
| Maximum voltage range | -36 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | 55.3 W |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 49.3 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-2000 m (0-6562 ft.) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.9 mm (1.72 in. x 17.4 in. x 8.85 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 229.9 mm (1.72 in. x 17.4 in. x 9.05 in.) |
