| Place of Origin: | Fujian, China |
|---|---|
| Brand Name: | H3C |
| Model Number: | H3C S5720-52p-Ei-AC Switch |
| Minimum Order Quantity: | 1 unit |
| Price: | $3,000.00/pieces 1-9 pieces |
| Private Mold: | NO | Products Status: | Stock, Used, Stock |
|---|---|---|---|
| Ports: | ≥ 48 | Transmission Rate: | 10/100/1000Mbps |
| Function: | LACP, SNMP | Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 56 Gb/s | Product Name: | H3C S5720-52p-Ei-AC Switch |
| Type: | Rack |

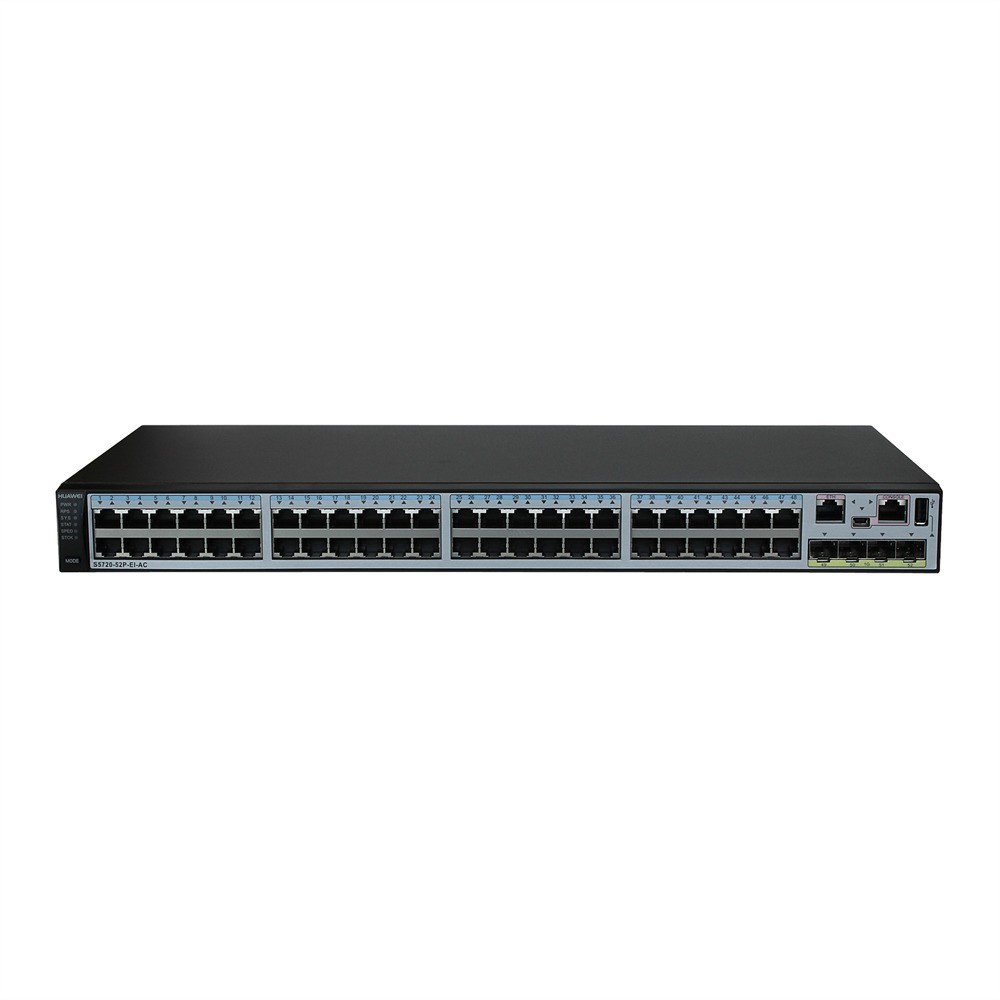

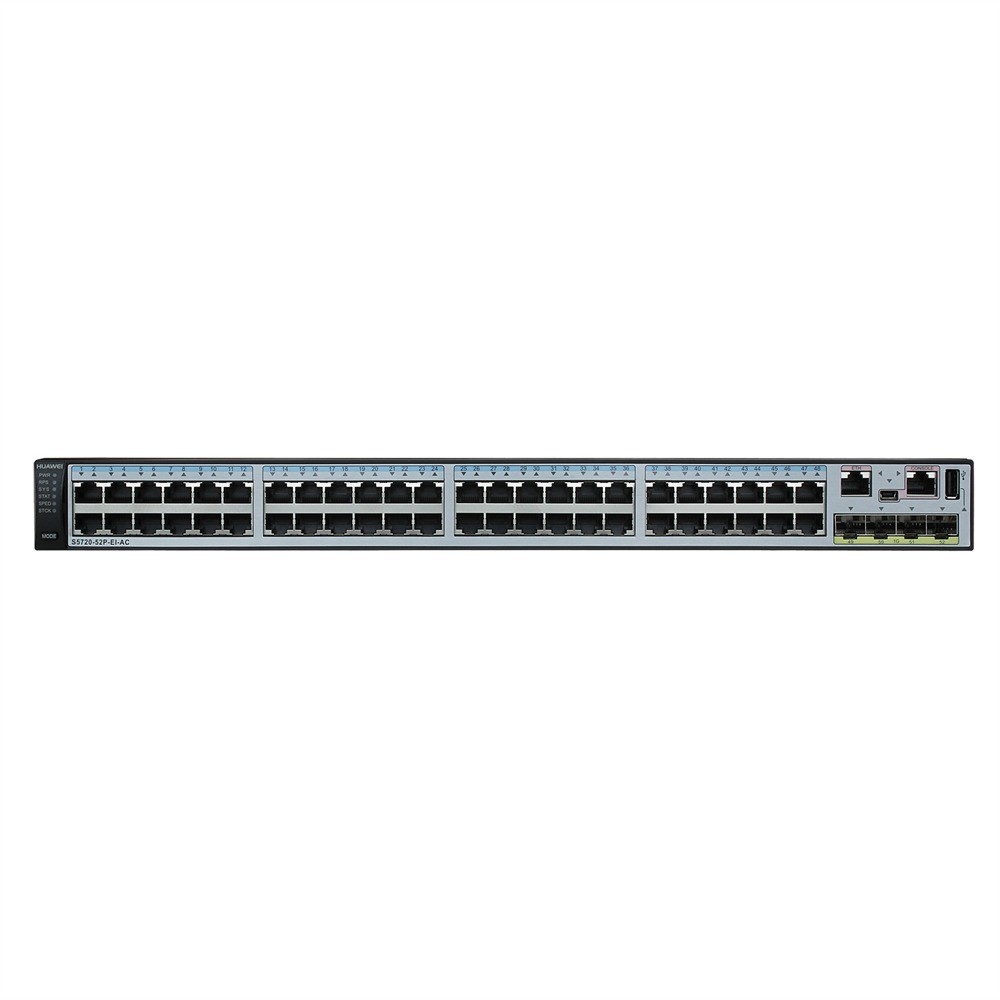

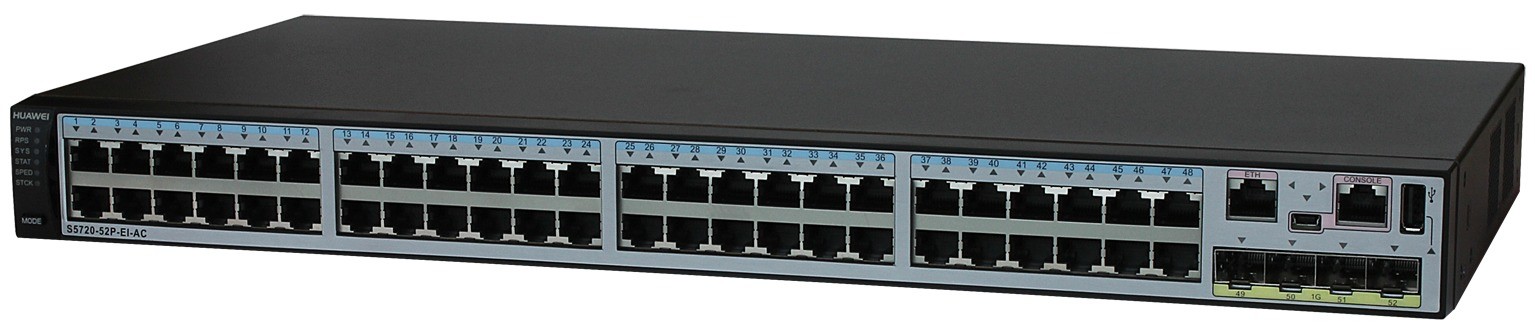

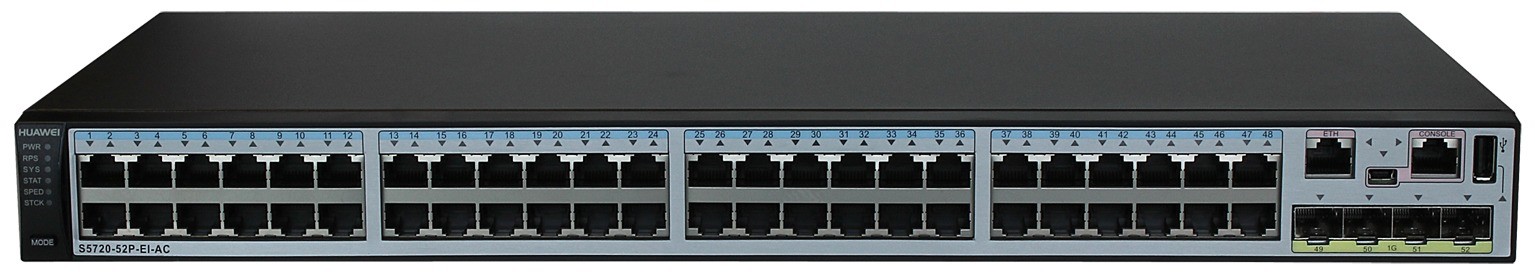

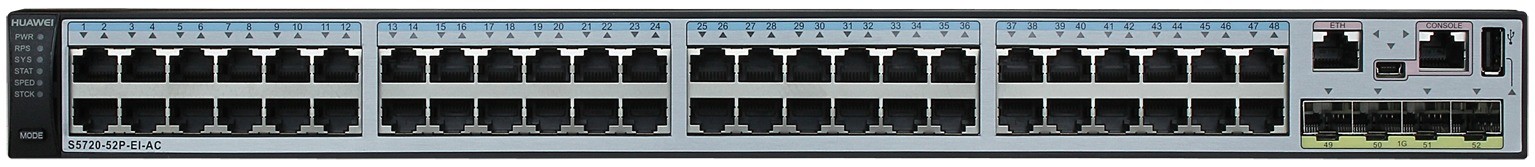

Huawei S5720-52P-EI-AC Switch is an Enhanced Gigabit Switch with 48 Ethernet 10/100/1000 ports, 4 Gig SFP, 2 QSFP+ dedicated stack ports and AC power supply, supporting RPS
The switch has Forwarding performance: 78 Mpps and Switching capacity: 598 Gbit/s. It provides flexible all-gigabit access and enhanced 10GE uplink port scalability. S5720-52P-EI-AC can be widely used as access/aggregation switches in enterprise campus networks or gigabit access switches in data centers. In addition, S5720-EI supports the multi-VPN-instance CE (MCE) function, which allows users in different VPNs to connect. The switch supports large multi-instance routing tables to isolate users in different VPNs. Users in multiple VPNs connect to a provider edge (PE) device through the same physical port on the switch, which reduces the cost on VPN network deployment. S5720-EI supports Multiprotocol Label Switching (MPLS) L3VPN, MPLS L2VPN (VPWSVPLS), MPLS-TE, and MPLS QoS. It is one of a few cost-effective MPLS-capable fixed switches
| Item | Description |
| Model | S5720-52P-EI-AC |
| Part number | 02350BEC |
| Port | 48 Ethernet 10/100/1000 ports, 4 Gig SFP, 2 QSFP+ dedicated stack ports |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 73.12 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±6 kV |
| Power supply surge protection | ±6 kV in differential mode, ±6 kV in common mode |
| Weight (with packaging) | 4.7 kg (10.36 lb) |

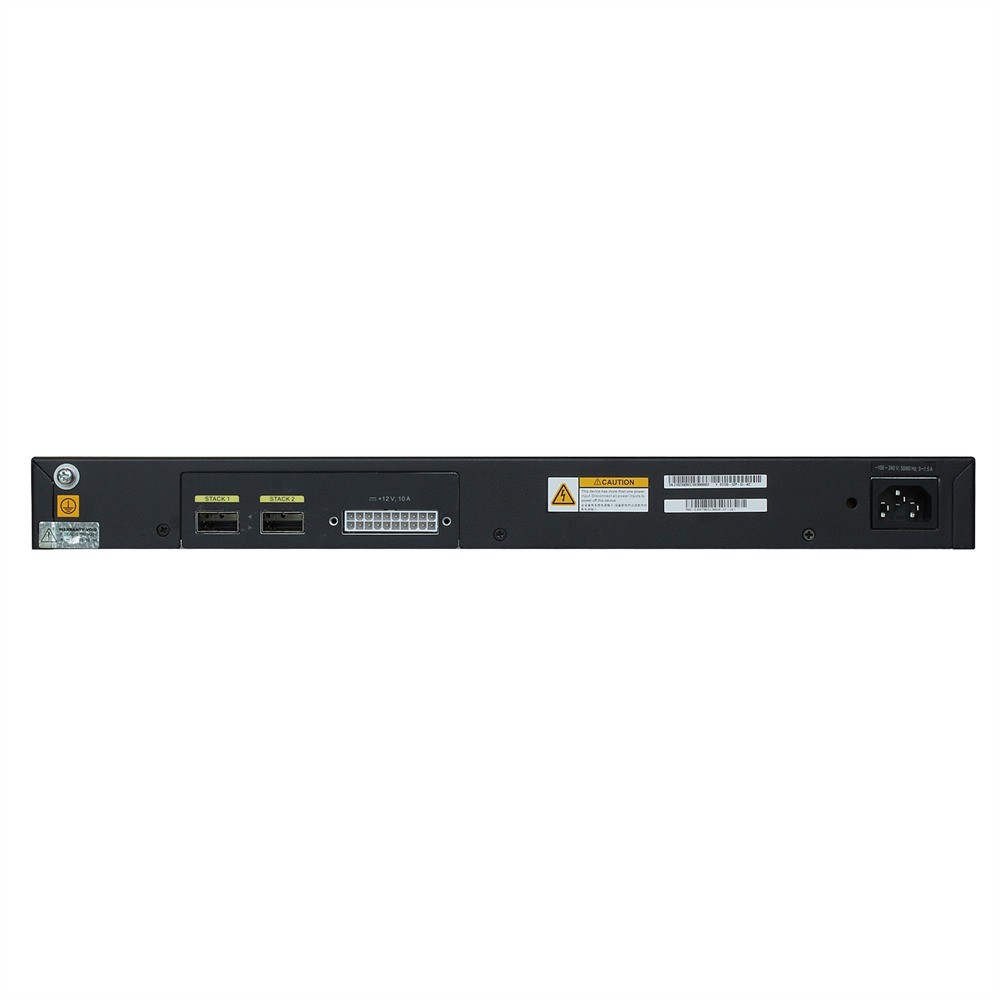

| Stack ports | Two fixed QSFP+ stack ports on the rear card |
| RTC | Supported |
| RPS | Supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, full speed of fans) | 60.3 W |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 49.3 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.9 mm (1.72 in. x 17.4 in. x 8.85 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 237.3 mm (1.72 in. x 17.4 in. x 9.34 in.) |
