| Place of Origin: | Fujian, China |
|---|---|
| Brand Name: | H3C |
| Model Number: | H3C S5720-56PC-Ei-AC Switch |
| Minimum Order Quantity: | 1 unit |
| Price: | $1,300.00/pieces 1-9 pieces |
| Private Mold: | NO | Products Status: | Stock, Used, Stock |
|---|---|---|---|
| Ports: | ≥ 48 | Transmission Rate: | 10/100/1000Mbps |
| Function: | LACP, SNMP | Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 56 Gb/s | Product Name: | H3C S5720-56PC-Ei-AC Switch |
| Type: | Rack |

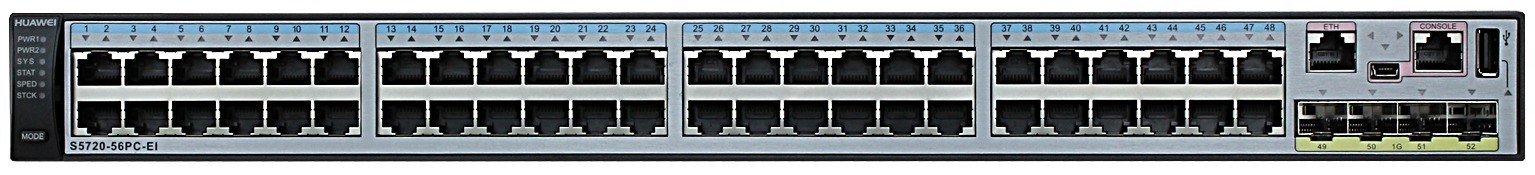

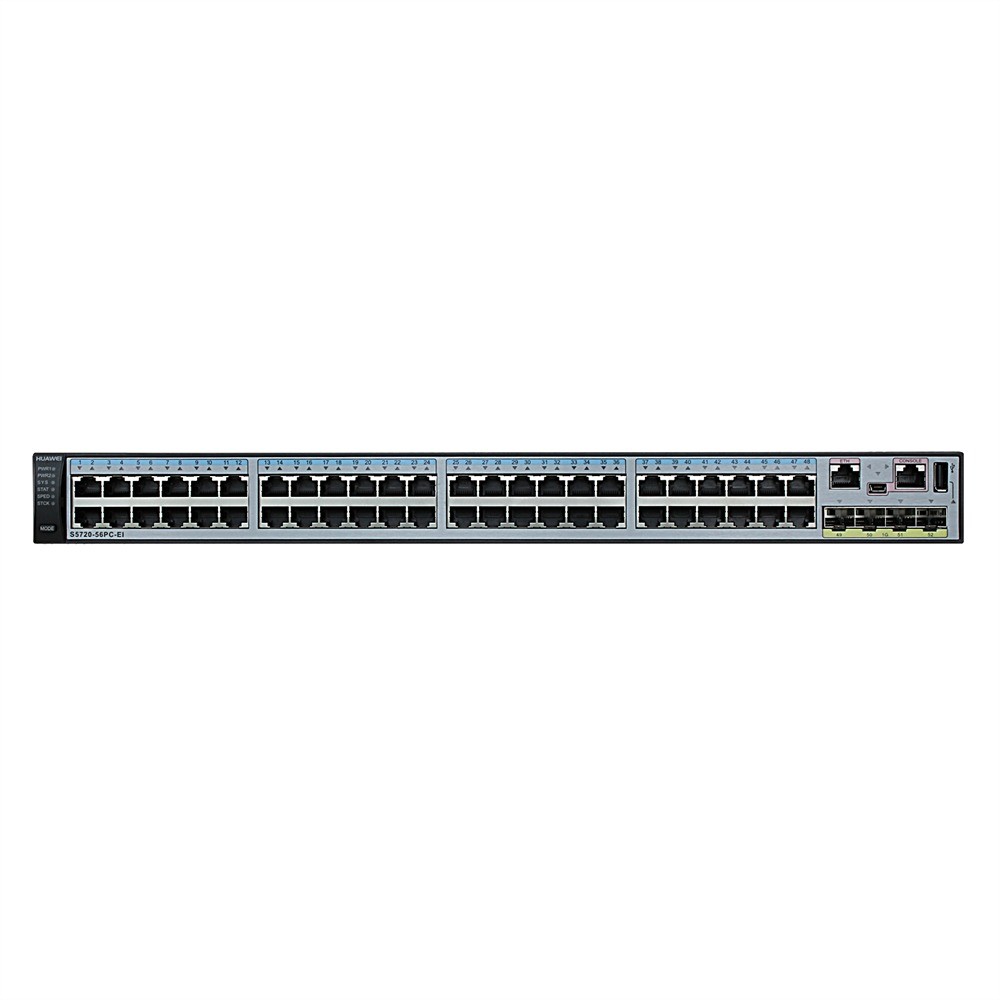

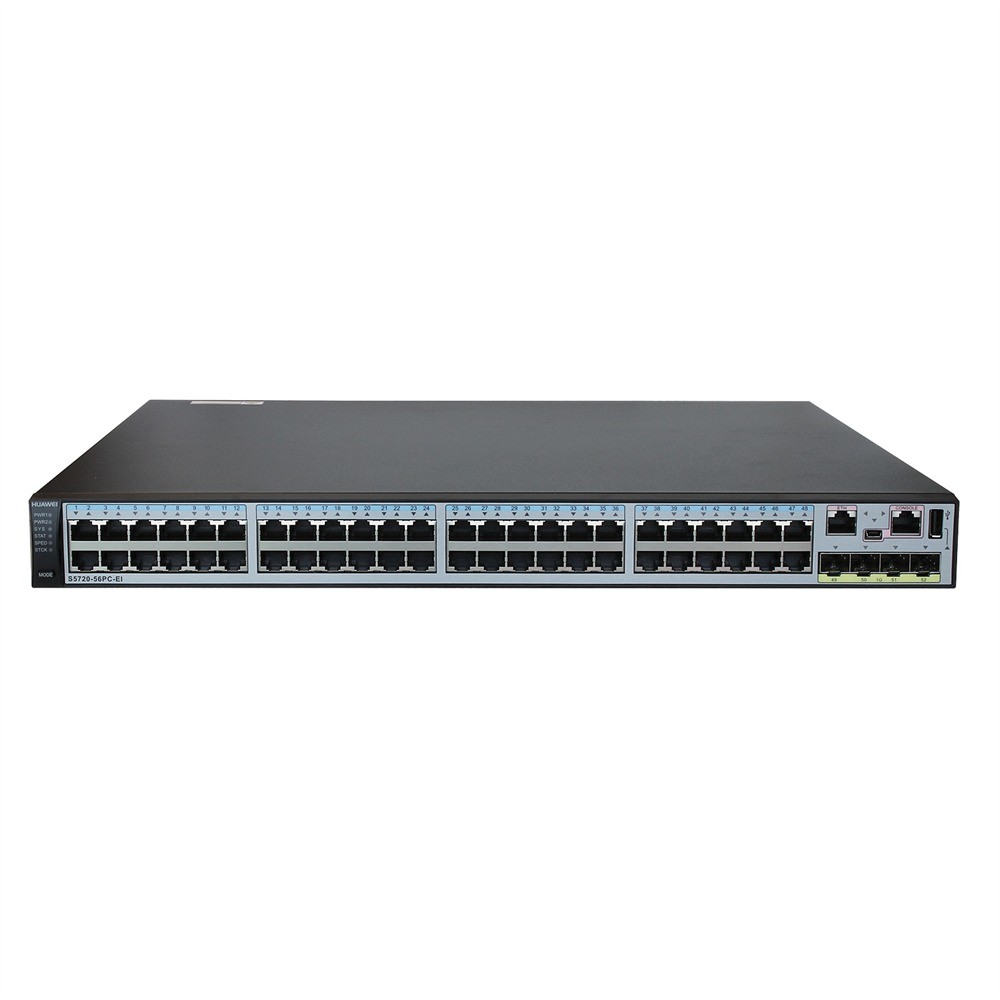

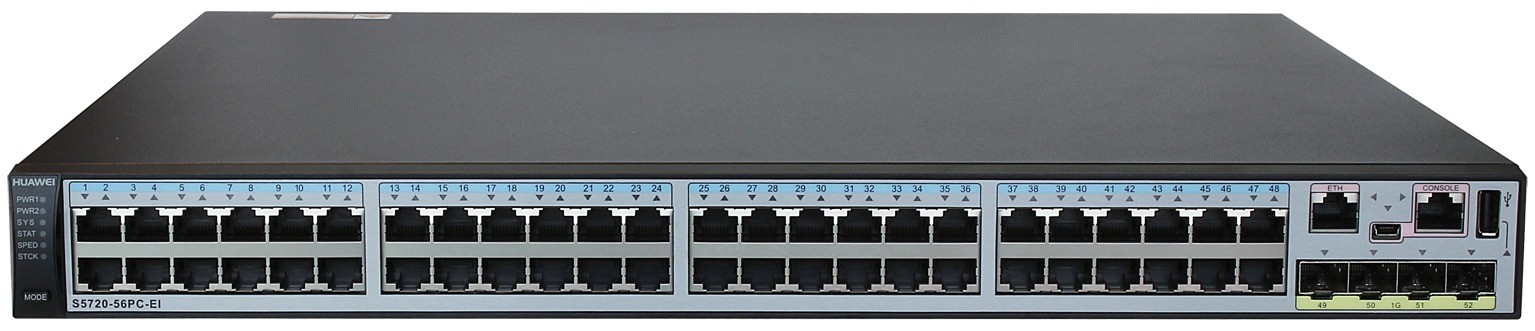

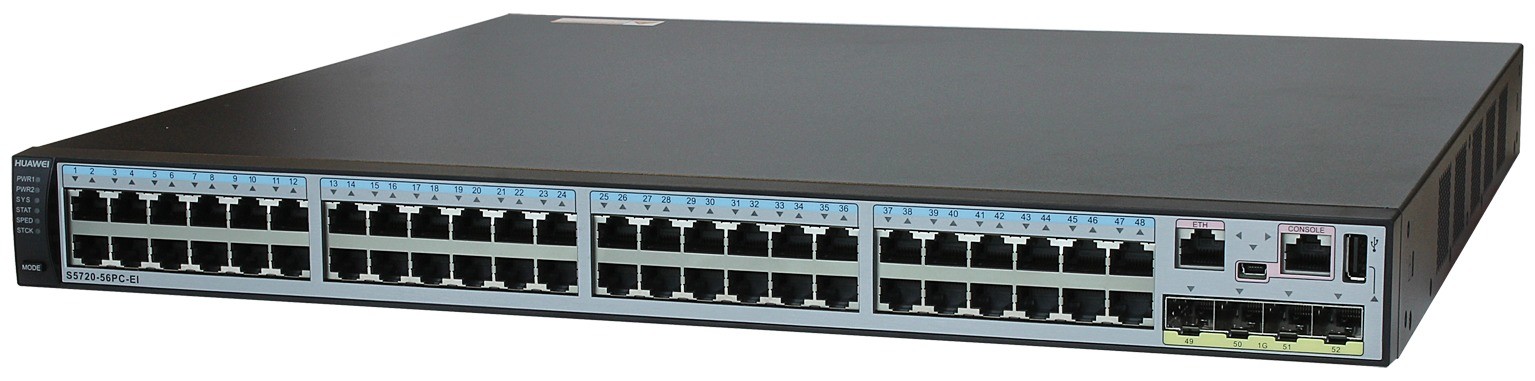

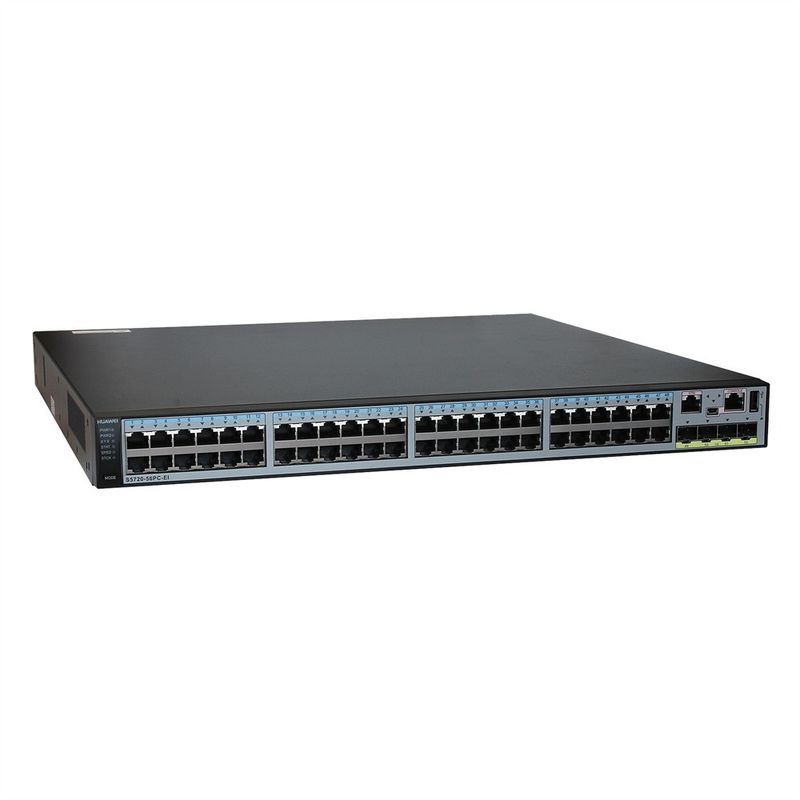

Huawei S5720-56PC-EI-AC Switch is an Enhanced Gigabit Switch with 48 Ethernet 10/100/1000 ports, 4 Gig SFP and Double hot swappable AC or DC power supplies, one AC power module equipped by default
The switch has Forwarding performance: 108 Mpps and Switching capacity: 598 Gbit/s. It provides flexible GE access ports (including optical, electrical, and combo ports) and 10GE uplink ports. Built on next-generation high-performance processors and Huawei Versatile Routing Platform (VRP), the S5720-EI provides larger table sizes and higher hardware processing capabilities than equivalent switches.
In addition, S5720-EI is equipped with two removable power modules that can work in 1+1 redundancy backup mode. Mixed installation of AC and DC power modules is supported, allowing for flexible configuration of AC or DC power modules according to service requirements. The S5720-EI provides two removable fan modules. The fan speed can be adjusted according to working temperatures of the device, improving device reliability.
| Item | Description |
| Model | S5720-56PC-EI-AC |
| Part number | 02350BDV |
| Port | 48 Ethernet 10/100/1000 ports, 4 Gig SFP |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Service ports on front panel: ±6 kV in common mode |
| Ports on the 2-port 10GE RJ45 rear interface card: ±2 kV in common mode | |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode | |
| Weight (with packaging) | 10 kg (22.05 lb) |
| Stack ports | Ports on the 2-port 10GE SFP+ rear interface card |
| Ports on the 2-port 10GE RJ45 rear interface card | |
| Ports on the 2-port QSFP+ rear stack card | |
| RTC | Supported |
| RPS | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| -48 V DC to -60 V DC | |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| -36 V DC to -72 V DC | |
| Maximum power consumption (100% throughput, full speed of fans) | 85.7 W |
| Typical power consumption (30% of traffic load) | 40.45 W (without card) |
| Tested according to ATIS standard | 47.78 W (with 2*10GE optical card) |
| EEE enabled | 52.87 W (with 2*QSFP+ stack card) |
| No PoE power consumption | 55.85 W (with 2*10GE electrical card) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 51.2 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | AC power modules configured: 0-5000 m (0-16404 ft.) |
| DC power modules configured: 0-2000 m (0-6562 ft.) | |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) |
